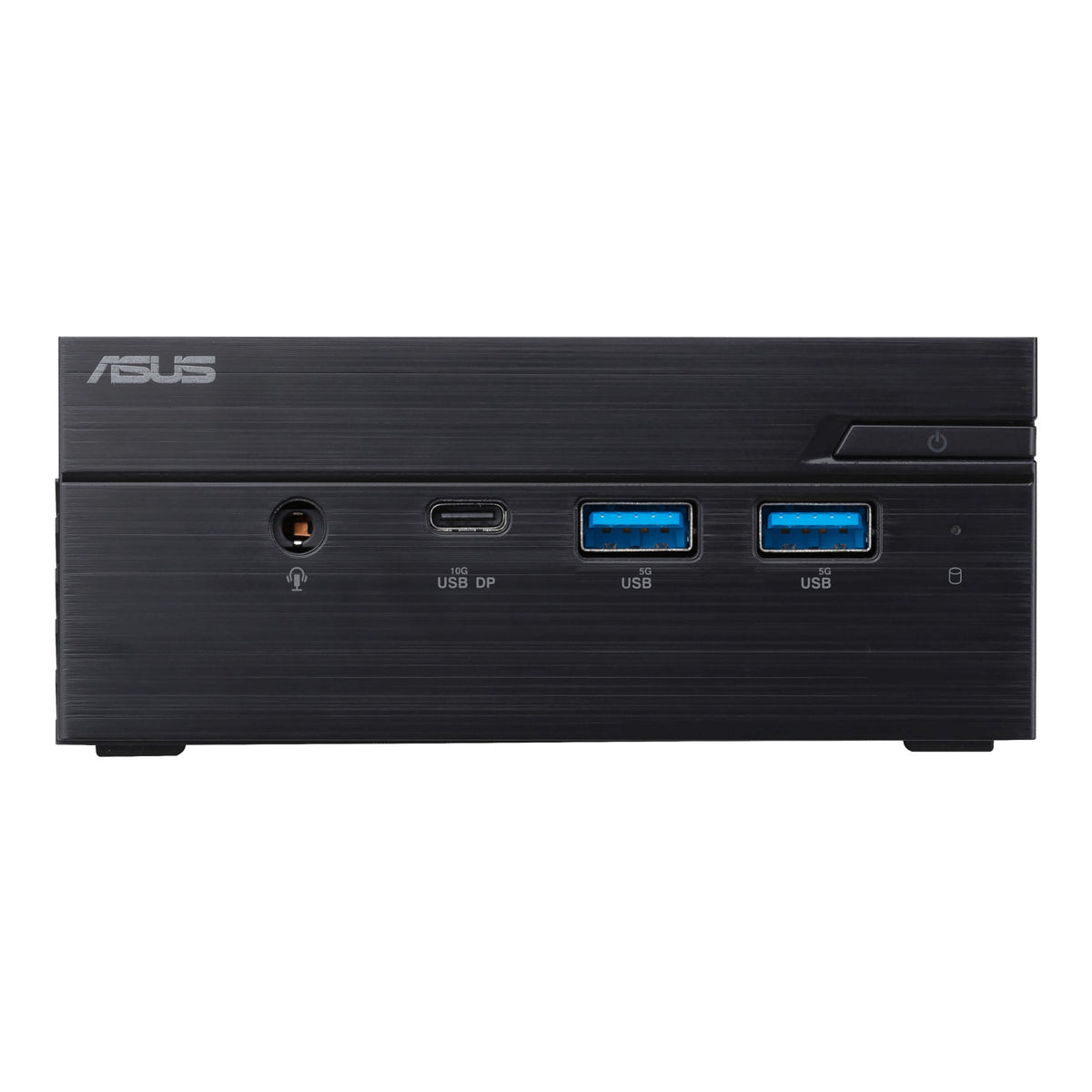

ASUS ExpertCenter PN53-S5026MDS1 AMD Ryzen™ 5 7530U 8 GB DDR4-SDRAM 256 GB SSD Mini PC Black
Product overview & specifications
AMD Ryzen 5 7530U (16MB Cache, 2GHz), 8GB DDR4-SDRAM, 256GB SSD, AMD Radeon Graphics, LAN, WLAN, Bluetooth, No OS
Ultra-compact mini PC with AMD Ryzen™ 7000U Series Processor and AMD Radeon ™ Graphics, supports Quad displays and 4K resolution, 1x PCIe® Gen3x4 M.2 NVMe™ SSD, 2.5 Gb LAN, WiFi 6E
Ultra-compact Mini PC provides flexible, comprehensive solutions
ASUS ExpertCenter PN53-S1 is no lightweight when it comes to performance. It harnesses the power of the latest AMD Ryzen™ 7000 Series Processor with Radeon™ graphics, and can accommodate multiple storage combinations.
Ultra-compact Mini PC provides flexible, comprehensive solutions
ASUS ExpertCenter PN53-S1 is no lightweight when it comes to performance. It harnesses the power of the latest AMD Ryzen™ 7000 Series Processor with Radeon™ graphics, and can accommodate multiple storage combinations.
| Processor | |
|---|---|
| Processor generation | AMD Ryzen 7000 Series |
| Processor cache type | L2 & L3 |
| Processor cache | 16 MB |
| Processor frequency | 2 GHz |
| Processor model | 7530U |
| Processor manufacturer | AMD |
| Processor boost frequency | 4.5 GHz |
| Processor threads | 12 |
| Processor cores | 6 |
| L3 cache | 16 MB |
| L2 cache | 3 MB |
| Processor family | AMD Ryzen™ 5 |
| Memory | |
| Memory layout (slots x size) | 1 x 8 GB |
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Internal memory type | DDR4-SDRAM |
| Storage | |
| Storage media | SSD |
| Optical drive type | No |
| SSD interface | PCI Express 3.0 |
| SSD capacity | 256 GB |
| Number of SSDs installed | 1 |
| Total storage capacity | 256 GB |
| SSD form factor | M.2 |
| Total SSDs capacity | 256 GB |
| NVMe | Yes |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | AMD Radeon Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | AMD Radeon Graphics |
| On-board GPU manufacturer | AMD |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI version | 2.1 |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| DC-in jack | Yes |
| DisplayPort version | 1.4 |
| Number of rear USB ports | 3 |
| Number of front USB ports | 3 |
| Number of front audio ports | 1 |
| Technical details | |
| Cable lock slot type | Kensington |
| Product type | Mini PC |
| Product colour | Black |
| Chassis type | Mini PC |
| Cable lock slot | Yes |
| Sustainability certificates | ENERGY STAR |
| Design | |
| VESA mounting | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Chassis type | Mini PC |
| Cable lock slot | Yes |
| Performance | |
| Product type | Mini PC |
| Software | |
| Operating system installed | No |
| Power | |
| Power supply | 90 W |
| Certificates | |
| Certification | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Ergonomics | |
| VESA mounting | Yes |
| Weight & dimensions | |
| Package width | 183 mm |
| Package depth | 151 mm |
| Package height | 127 mm |
| Width | 115 mm |
| Depth | 115 mm |
| Height | 49 mm |
| Package weight | 1.84 kg |
| Weight | 550 g |
| Packaging data | |
| Package width | 183 mm |
| Package depth | 151 mm |
| Package height | 127 mm |
| Package weight | 1.84 kg |
| Packaging content | |
| Display included | No |
| Display | |
| Display included | No |
| Other features | |
| VESA mounting | Yes |
| On-board graphics card | Yes |
| Processor manufacturer | AMD |
ASUS ExpertCenter PN53-S5026MDS1 AMD Ryzen™ 5 7530U 8 GB DDR4-SDRAM 256 GB SSD Mini PC Black
£670.68
