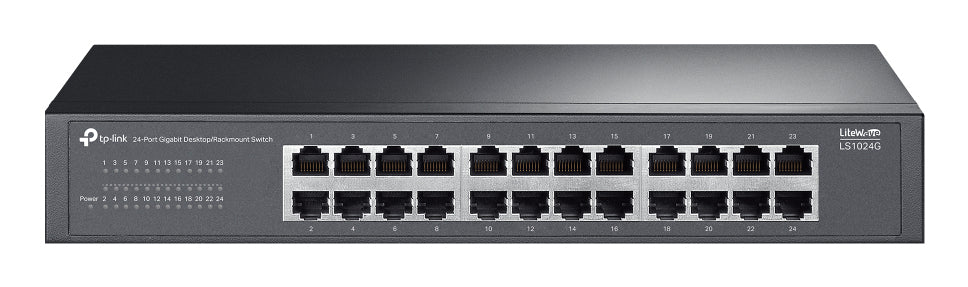

TP-Link LS1024G network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Product overview & specifications
24 × RJ45, 10/100/1000Mbps, 48 Gbps, 35.712Mpps, 8K, 10KB, 294 × 140 × 44 mm
The LS1024G Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the LS1024G can save power consumption, making it an eco-friendly solution for your business network.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Data transmission | |
| Jumbo frames | 10000 |
| Packet buffer memory | 2 MB |
| MAC address table | 8000 entries |
| Switching capacity | 48 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 35.712 Mpps |
| Design | |
| Product colour | Black |
| Rack mounting | No |
| Performance | |
| Mean time between failures (MTBF) | 1183684 h |
| Fanless | Yes |
| Packet buffer memory | 2 MB |
| Auto-negotiation | Yes |
| Power | |
| Power consumption (max) | 12.6 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 0.6 A |
| Power source | AC |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 42.77 BTU/h |
| Weight & dimensions | |
| Width | 294 mm |
| Depth | 140 mm |
| Height | 44 mm |
| Packaging content | |
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | Power |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 1183684 h |
| Rack mounting | No |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Memory | |
| Packet buffer memory | 2 MB |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Packaging data | |
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | Power |
