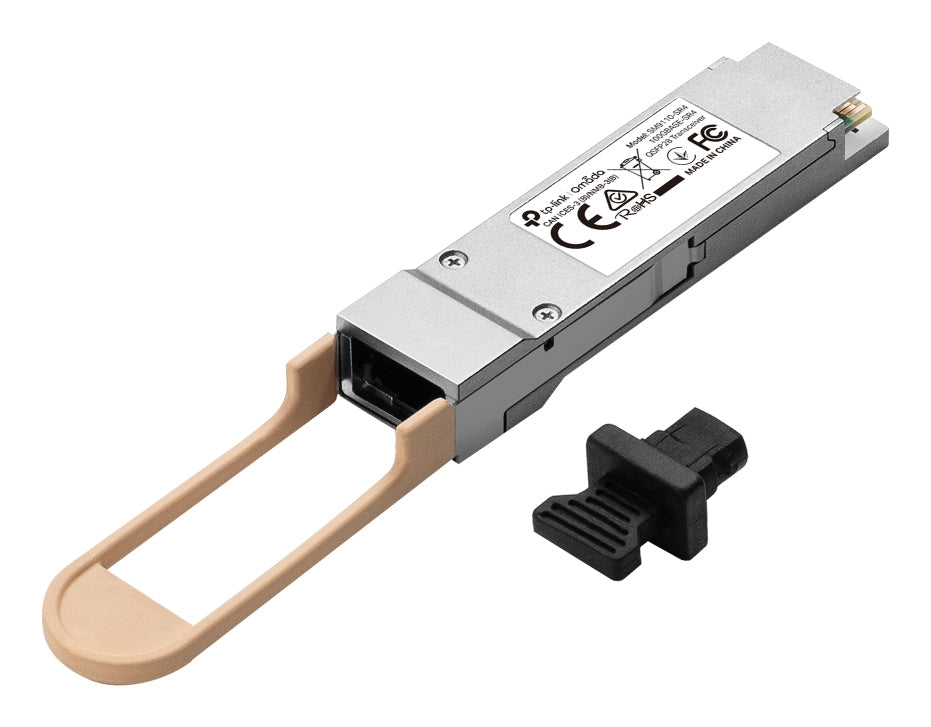

TP-Link Omada SM9110-SR4 network transceiver module Fiber optic 100000 Mbit/s QSFP28 850 nm
Product overview & specifications
QSFP28, 100GBASE/40GBASE, SR4, MTP/MPO-12, 850 nm, 3.3v, PIN, 50/125um MMF, 0°C to 70°C
The SM9110-SR4 is designed to extend transmission distance based on ultra-fast Ethernet connectivity. It is a 100G/40GBASE-SR4 high performance 850nm multi-mode QSFP28 transceiver. It supports 100G Ethernet connection up to 100 m (OM4) and 40G Ethernet connection up to 150 m (OM4).
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | MPO-12, MTP |
| Networking standards | IEEE 802.3ba, IEEE 802.3bm |
| Maximum transfer distance | 150 m |
| Wavelength | 850 nm |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| Tx power (min) | -8.4 dBmW |
| Tx power (max) | 2.4 dBmW |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP28 |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Ethernet interface type | 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| SFP transceiver standard | SR4 |
| Fiber ethernet cabling technology | 40GBASE, 100GBASE |
| Country of origin | China |
| Product colour | Metallic |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Features | |
| Product colour | Metallic |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Form factor | QSFP28 |
| Country of origin | China |
| Certification | QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP |
| Power | |
| Input voltage | 3.3 V |
| Certificates | |
| Certification | QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | MPO-12, MTP |
| Networking standards | IEEE 802.3ba, IEEE 802.3bm |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP28 |
| Ethernet interface type | 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Weight & dimensions | |
| Width | 124 mm |
| Depth | 18.4 mm |
| Height | 11.7 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| User guide | Yes |
| Technical details | |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Maximum transfer distance | 150 m |
| Wavelength | 850 nm |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| Tx power (min) | -8.4 dBmW |
| Tx power (max) | 2.4 dBmW |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Packaging data | |
| User guide | Yes |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
