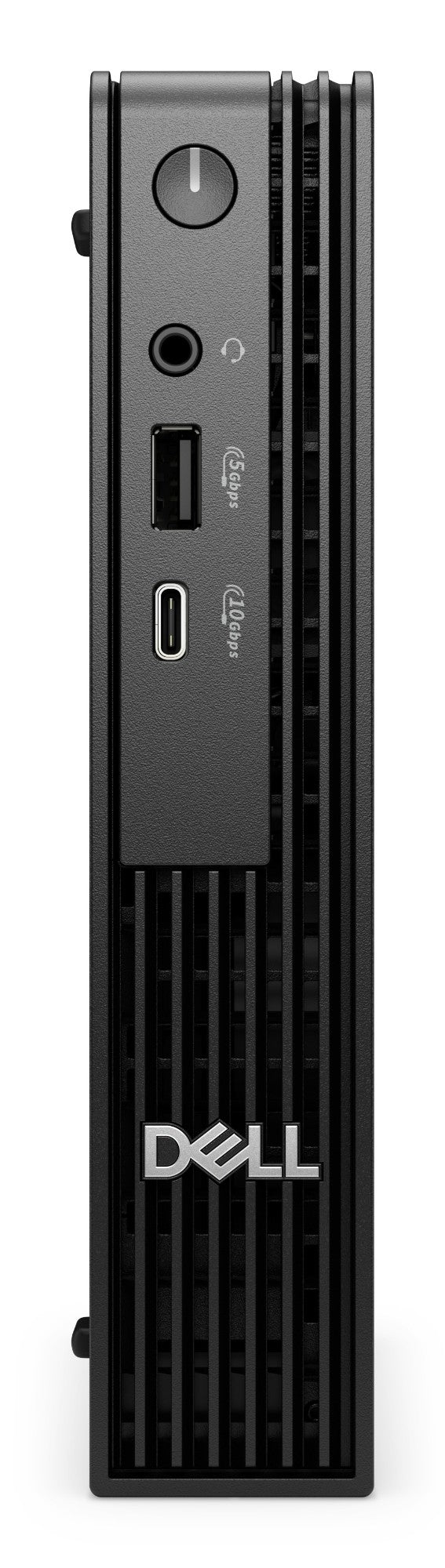

DELL Pro QCM1250 Intel® Core™ i5 i5-14500T 8 GB DDR5-SDRAM 256 GB SSD Windows 11 Pro Micro PC Mini PC Black
Product overview & specifications
DELL Pro QCM1250, Intel® Core™ i5, i5-14500T, 8 GB, 256 GB, Windows 11 Pro, 64-bit
DELL Pro QCM1250. Processor family: Intel® Core™ i5, Processor model: i5-14500T. Internal memory: 8 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 770. Wi-Fi. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 90 W. Chassis type: Micro PC. Product type: Mini PC. Weight: 1.16 kg. Product colour: Black
| Processor | |
|---|---|
| Processor generation | Intel® Core™ i5 (14th gen) |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor model | i5-14500T |
| Number of processors installed | 1 |
| Processor manufacturer | Intel |
| Processor boost frequency | 4.8 GHz |
| Processor threads | 20 |
| Processor cores | 14 |
| Processor family | Intel® Core™ i5 |
| Performance cores | 6 |
| Efficient cores | 8 |
| Performance-core base frequency | 1.7 GHz |
| Efficient-core base frequency | 1.2 GHz |
| Processor base power | 35 W |
| Maximum turbo power | 92 W |
| Efficient-core Max Turbo Frequency | 3.4 GHz |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Neural processor unit (NPU) | |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Memory | |
| Non-ECC | Yes |
| Memory layout (slots x size) | 1 x 8 GB |
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Memory channels | Single-channel |
| Memory data transfer rate | 4800 MT/s |
| Storage | |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Optical drive type | No |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 256 GB |
| Number of SSDs installed | 1 |
| Total storage capacity | 256 GB |
| SSD memory type | TLC |
| SSD form factor | M.2 |
| Total SSDs capacity | 256 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel UHD Graphics 770 |
| On-board GPU manufacturer | Intel |
| Performance | |
| Market positioning | Business |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Motherboard chipset | Intel® Q870 |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio chip | Realtek ALC3204 |
| Audio system | High Definition Audio |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| LAN controller | Intel WGI219LM |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI version | 2.1 |
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| DC-in jack | Yes |
| DisplayPort version | 1.4a |
| Number of rear USB ports | 4 |
| Number of front USB ports | 2 |
| Number of front audio ports | 1 |
| Power | |
| Power supply input frequency | 50 / 60 Hz |
| Power supply input voltage | 100 - 240 V |
| Power supply | 90 W |
| Technical details | |
| Cable lock slot type | Kensington |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Product colour | Black |
| Chassis type | Micro PC |
| Audio system | High Definition Audio |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Motherboard chipset | Intel® Q870 |
| Sustainability certificates | ENERGY STAR, EPEAT Climate +, EPEAT Gold |
| Design | |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Chassis type | Micro PC |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Software | |
| Operating system architecture | 64-bit |
| Trial software | Activate Your Microsoft 365 For A 30 Day Trial |
| Operating system installed | Windows 11 Pro |
| Display | |
| Display included | No |
| Processor special features | |
| Intel® vPro™ Platform Eligibility | Yes |
| Audio | |
| Audio chip | Realtek ALC3204 |
| Audio system | High Definition Audio |
| Operational conditions | |
| Operating altitude | -15.2 - 3048 m |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 10 - 35 °C |
| Non-operating altitude | -15.2 - 10668 m |
| Operating vibration | 0.26 G |
| Non-operating vibration | 1.37 G |
| Operating shock | 40 G |
| Non-operating shock | 105 G |
| Sustainability | |
| Total carbon footprint (kg of CO2e) | 77.6 |
| Sustainability certificates | ENERGY STAR, EPEAT Climate +, EPEAT Gold |
| Weight & dimensions | |
| Width | 36 mm |
| Depth | 178 mm |
| Height | 182 mm |
| Weight | 1.16 kg |
| Packaging content | |
| Display included | No |
| Carbon footprint | |
| Total carbon footprint (kg of CO2e) | 77.6 |
| PAIA version | GaBi version 1, 2024 |
| Carbon emissions, energy usage (kg of CO2e) | 33.45 |
| Carbon emissions, manufacturing (kg of CO2e) | 41.52 |
| Carbon emissions, logistics (kg of CO2e) | 2.17 |
| Carbon emissions, end-of-life (kg of CO2e) | 0.54 |
| Other features | |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
