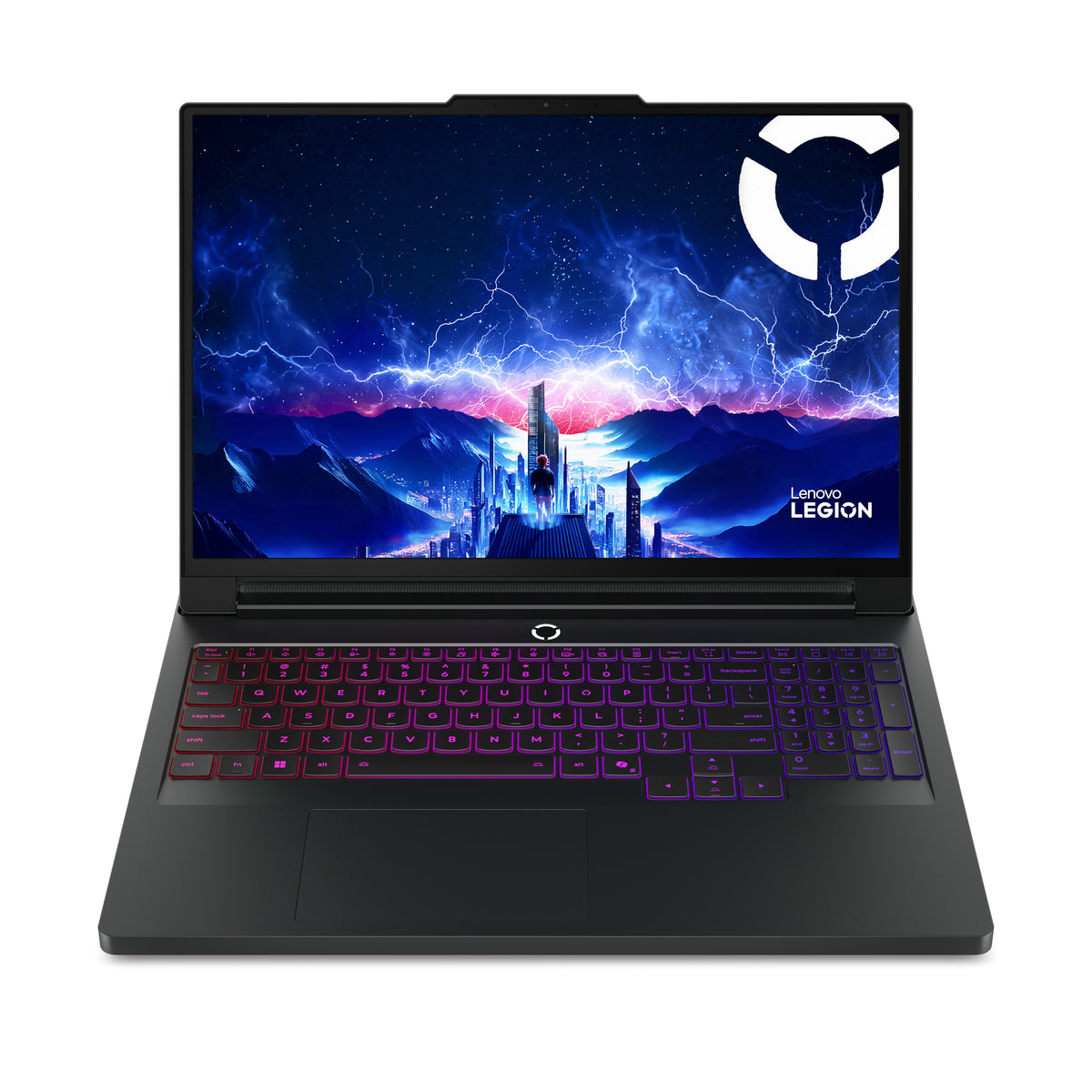

Lenovo Legion Pro 7 16IAX10H Intel Core Ultra 9 290HX Plus Laptop 40.6 cm (16") WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5070 Ti Wi-Fi 7 (802.11be) Windows 11 Home English Black
Product overview & specifications
Intel Core Ultra 9 290HX Plus, 24C (8P + 16E)/24T, Max Turbo up to 5.5GHz, 36MB Intel Smart Cache, 2x 16GB CSODIMM DDR5-6400, 1TB SSD M.2 2242 PCIe 4.0x4 NVMe, 16" WQXGA (2560x1600) OLED 500nits (typical) / 1100nits (peak) Glossy 100% DCI-P3 240Hz DisplayHDR True Black 1000 Dolby Vision G-SYNC Low Blue Light High Gaming Flicker Free, NVIDIA GeForce RTX 5070 Ti 12GB GDDR7, Boost Clock 2220MHz, TGP 140W, 992 AI TOPS, Wi-Fi 7 802.11be 2x2 + BT5.4, Windows 11 Home
Out-Play. Out-Perform. Out-Pro.
Unlock your eSports potential with this 16″ AI-enhanced gaming laptop that’s built to keep you at the top of the rankings no matter what lobby you’re in.- Includes Intel® Core™ Ultra processors for superior performance
- Features GeForce RTX™ 50 series GPUs with NVIDIA DLSS 4
- Advanced Lenovo AI Engine+ for real-time optimizations
Unlock your eSports potential with this 16″ AI-enhanced gaming laptop that’s built to keep you at the top of the rankings no matter what lobby you’re in.- Includes Intel® Core™ Ultra processors for superior performance
- Features GeForce RTX™ 50 series GPUs with NVIDIA DLSS 4
- Advanced Lenovo AI Engine+ for real-time optimizations
| Design | |
|---|---|
| Colour name | Eclipse Black |
| Product type | Laptop |
| Housing material | Aluminium |
| Form factor | Clamshell |
| Product colour | Black |
| Display back cover material | Aluminium |
| Display | |
| HD type | WQXGA |
| Display surface | Gloss |
| Panel type | OLED |
| LED backlight | Yes |
| Display brightness | 500 cd/m² |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| Display diagonal | 40.6 cm (16") |
| Maximum refresh rate | 240 Hz |
| RGB colour space | DCI-P3 |
| High Dynamic Range (HDR) technology | Dolby Vision |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| High Dynamic Range (HDR) supported | Yes |
| Processor | |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor cache type | Smart Cache |
| Processor cache | 36 MB |
| Processor model | 290HX Plus |
| Processor boost frequency | 5.5 GHz |
| Processor cores | 24 |
| Processor threads | 24 |
| Motherboard chipset | Intel HM870 |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 9 |
| Processor base power | 55 W |
| Maximum turbo power | 160 W |
| Efficient-core base frequency | 2.1 GHz |
| Performance-core base frequency | 2.7 GHz |
| Efficient-core Max Turbo Frequency | 4.7 GHz |
| Performance-core Max Turbo Frequency | 5.4 GHz |
| Performance cores | 8 |
| Efficient cores | 16 |
| Low Power Efficient-cores | 0 |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 36 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 8 TOPs |
| Memory | |
| Memory form factor | SO-DIMM |
| Internal memory | 32 GB |
| Memory layout (slots x size) | 2 x 16 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 6400 MHz |
| Maximum internal memory | 32 GB |
| Storage | |
| SSD form factor | M.2 |
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| Total storage capacity | 1 TB |
| Total SSDs capacity | 1 TB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete graphics card memory | 12 GB |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card | Yes |
| On-board graphics card model | Intel® Graphics |
| Discrete graphics card model | NVIDIA GeForce RTX 5070 Ti |
| Discrete graphics memory type | GDDR7 |
| Discrete GPU manufacturer | NVIDIA |
| On-board GPU manufacturer | Intel |
| Total Graphics Power (TGP) | 140 W |
| Audio | |
| Audio chip | Realtek ALC3306 |
| Number of microphones | 2 |
| Number of built-in speakers | 4 |
| Built-in microphone | Yes |
| Camera | |
| Front camera | Yes |
| Front camera resolution (numeric) | 5 MP |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| WWAN | Not installed |
| Antenna type | 2x2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| USB Power Delivery (USB PD) | Yes |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| Performance | |
| Motherboard chipset | Intel HM870 |
| Keyboard | |
| Pointing device | Touchpad |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Keyboard language | English |
| Keyboard backlit colour | RGB |
| Keyboard backlit zone | Per-key RGB |
| Software | |
| Operating system language | English |
| Trial software | Office |
| Operating system installed | Windows 11 Home |
| Technical details | |
| Housing material | Aluminium |
| Form factor | Clamshell |
| Product colour | Black |
| Discrete graphics card memory | 12 GB |
| Battery | |
| Battery capacity | 99.9 Wh |
| Power | |
| AC adapter power | 400 W |
| USB Power Delivery (USB PD) | Yes |
| USB Type-C charging port | Yes |
| USB Type-C required charging power (min) | 95 W |
| USB Type-C required charging power (max) | 100 W |
| Security | |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Certificates | |
| Certification | RoHS |
| Weight & dimensions | |
| Width | 364.4 mm |
| Depth | 275.9 mm |
| Height (front) | 2.19 cm |
| Height (rear) | 2.67 cm |
| Weight | 2.57 kg |
| Packaging data | |
| AC adapter included | Yes |
| Packaging content | |
| AC adapter included | Yes |
| Other features | |
| On-board graphics card | Yes |
| AC adapter included | Yes |
