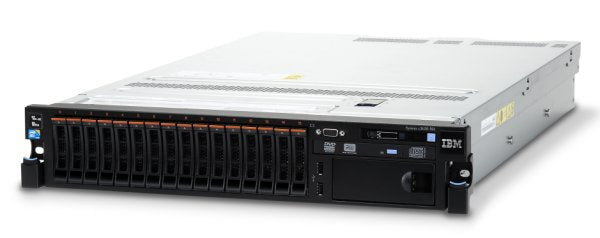

Lenovo System x3650 M4 server 600 GB Rack (2U) Intel® Xeon® E5 Family E5-2620 2 GHz 8 GB DDR3-SDRAM 550 W
Product overview & specifications
Intel Xeon E5-2620 (15MB Cache, 2GHz), 8GB DDR3-SDRAM, 600GB HDD, DVD±RW, Matrox G200eR2, LAN, M5110e, 2 x 550W
Highlights
- Innovative design, optimized for performance and reliability
- Wide range of business-critical applications, including cloud computing, virtual desktop, and business analytics
- Optimized for cloud computing and virtualization
- Outstanding reliability, availability and serviceability (RAS) for an improved business environment,
- Easy to deploy, integrate, service and manage
- Innovative design, optimized for performance and reliability
- Wide range of business-critical applications, including cloud computing, virtual desktop, and business analytics
- Optimized for cloud computing and virtualization
- Outstanding reliability, availability and serviceability (RAS) for an improved business environment,
- Easy to deploy, integrate, service and manage
| Processor | |
|---|---|
| Thermal Monitoring Technologies | Yes |
| Thermal Design Power (TDP) | 95 W |
| Tcase | 77.4 °C |
| Supported instruction sets | AVX |
| Stepping | C2 |
| Scalability | 2S |
| Processor threads | 12 |
| Processor package size | 52.5 x 45.0 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 32 nm |
| Number of QPI links | 2 |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory bandwidth supported by processor (max) | 42.6 GB/s |
| Maximum number of PCI Express lanes | 40 |
| Maximum internal memory supported by processor | 750 GB |
| Idle States | Yes |
| Graphics & IMC lithography | 32 nm |
| Execute Disable Bit | Yes |
| Embedded options available | Yes |
| Bus type | QPI |
| Processor cache type | Smart Cache |
| Processor cache | 15 MB |
| CPU multiplier (bus/core ratio) | 25 |
| Conflict-Free processor | No |
| Processor frequency | 2 GHz |
| Processor boost frequency | 2.5 GHz |
| Number of processors installed | 1 |
| Processor model | E5-2620 |
| System bus rate | 7.2 GT/s |
| Processor socket | LGA 2011 (Socket R) |
| Processor cores | 6 |
| Processor manufacturer | Intel |
| Motherboard chipset | Intel® C602J |
| Processor family | Intel® Xeon® E5 Family |
| Memory | |
| Internal memory | 8 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 24 |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Storage | |
| Supported RAID controllers | M5110e |
| Hot-swap | Yes |
| Total storage capacity | 600 GB |
| Number of HDDs installed | 2 |
| HDD speed | 10000 RPM |
| HDD capacity | 300 GB |
| Supported HDD sizes | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Optical drive type | DVD±RW |
| Number of HDDs supported | 8 |
| Graphics | |
| Thermal Design Power (TDP) | 95 W |
| On-board graphics card model | Matrox G200eR2 |
| Maximum graphics card memory | 16 MB |
| On-board graphics card | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 2 |
| USB 2.0 ports quantity | 6 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Optical drive | |
| Optical drive type | DVD±RW |
| Design | |
| Optical drive type | DVD±RW |
| Chassis type | Rack (2U) |
| Product colour | Black, Silver |
| Performance | |
| Compatible operating systems | Microsoft Windows Server 2012 R2, 2012, 2008 R2, 2008; Red Hat Enterprise Linux (RHEL) 5, 6, 7; SUSE Linux Enterprise Server (SLES) 10, 11, 12; VMware ESX 4.1 and ESXi 4.1, VMware vSphere (ESXi) 5.0, 5.1, 5.5. |
| Trusted Platform Module (TPM) | Yes |
| Software | |
| Compatible operating systems | Microsoft Windows Server 2012 R2, 2012, 2008 R2, 2008; Red Hat Enterprise Linux (RHEL) 5, 6, 7; SUSE Linux Enterprise Server (SLES) 10, 11, 12; VMware ESX 4.1 and ESXi 4.1, VMware vSphere (ESXi) 5.0, 5.1, 5.5. |
| Processor special features | |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Turbo Boost Technology | 1.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | No |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Identity Protection Technology version | 0.00 |
| Processor ARK ID | 64594 |
| CPU configuration (max) | 2 |
| Power | |
| Number of redundant power supplies installed | 2 |
| Number of redundant power supplies supported | 2 |
| Redundant power supply (RPS) support | Yes |
| Power supply input frequency | 50 - 60 Hz |
| Power supply | 550 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 85% |
| Storage relative humidity (H-H) | 5 - 80% |
| Operating temperature (T-T) | 5 - 40 °C |
| Technical details | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Trusted Platform Module (TPM) | Yes |
| Supported HDD sizes | 2.5" |
| Ethernet interface type | Gigabit Ethernet |
| CPU configuration (max) | 2 |
| Chassis type | Rack (2U) |
| Weight & dimensions | |
| Width | 445 mm |
| Height | 86 mm |
| Depth | 746 mm |
| Other features | |
| CPU configuration (max) | 2 |
Lenovo System x3650 M4 server 600 GB Rack (2U) Intel® Xeon® E5 Family E5-2620 2 GHz 8 GB DDR3-SDRAM 550 W
£1,257.98
