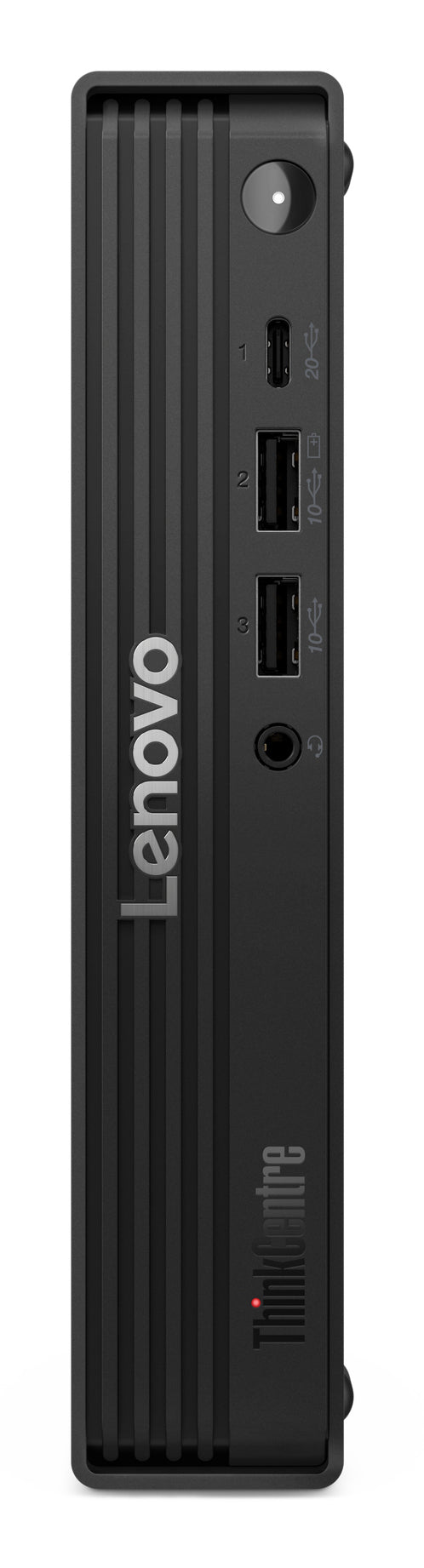

Lenovo ThinkCentre M90q Gen 6 Intel Core Ultra 9 285 32 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
Product overview & specifications
Intel Core Ultra 9 285, 24C (8P + 16E)/24T, Max Turbo up to 5.6GHz, 36MB Intel Smart Cache, 2x 16GB SODIMM DDR5-5600, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, Intel Graphics, Intel Wi-Fi 7 BE200 802.11be 2x2 + BT5.4 vPro, Windows 11 Pro
| Processor | |
|---|---|
| Processor model | 285 |
| Processor manufacturer | Intel |
| Processor threads | 24 |
| Processor cores | 24 |
| Processor family | Intel Core Ultra 9 |
| Memory | |
| Memory layout (slots x size) | 2 x 16 GB |
| Internal memory | 32 GB |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5600 MHz |
| Storage | |
| Storage media | SSD |
| Optical drive type | No |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Card reader integrated | No |
| Total storage capacity | 512 GB |
| SSD form factor | M.2 |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® Graphics |
| On-board GPU manufacturer | Intel |
| Performance | |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Motherboard chipset | Intel® Q870 |
| Audio chip | Realtek ALC233VB |
| Number of speakers | 1 |
| Audio system | High Definition Audio |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI version | 2.1 |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Power | |
| Power supply | 230 W |
| Technical details | |
| Cable lock slot type | Kensington |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Product colour | Black |
| Chassis type | Mini PC |
| Audio system | High Definition Audio |
| Cable lock slot | Yes |
| Motherboard chipset | Intel® Q870 |
| Design | |
| Volume | 1 L |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Chassis type | Mini PC |
| Cable lock slot | Yes |
| Software | |
| Operating system language | German |
| Operating system installed | Windows 11 Pro |
| Audio | |
| Audio chip | Realtek ALC233VB |
| Number of speakers | 1 |
| Audio system | High Definition Audio |
| Weight & dimensions | |
| Volume | 1 L |
| Width | 179 mm |
| Depth | 182.9 mm |
| Height | 36.5 mm |
| Weight | 1.34 kg |
| Packaging content | |
| Mouse included | Yes |
| Keyboard included | Yes |
| Mouse connectivity | Wired |
| Keyboard connectivity | Wired |
| Certificates | |
| Certification | ENERGY STAR,TCO,EPEAT Gold,RoHS |
| Keyboard | |
| Keyboard connectivity | Wired |
| Other features | |
| Number of speakers | 1 |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
