Lenovo 4XB7A95057 internal solid state drive 6.4 TB 2.5" U.3 NVMe 3D TLC NAND
Product overview & specifications

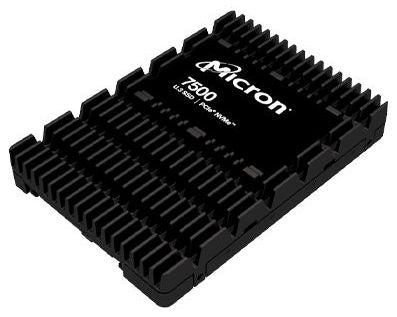

ThinkSystem 2.5" U.3 7500 MAX 6.4TB Mixed Use NVMe PCIe 4.0 x4 HS SSD
The ThinkSystem 7500 MAX Mixed Use NVMe SSDs are advanced data center SSDs optimized for mixed read-write performance, endurance, and strong data protection for Lenovo servers. With a PCIe 4.0 x4 interface, they are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. Now with SED encryption as standard, these drives help ensure data security, even when the drive is removed from the server.
This product guide provides essential presales information to understand the ThinkSystem 7500 MAX Mixed Use NVMe SSDs offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the 7500 MAX SSDs and consider their use in IT solutions.
This product guide provides essential presales information to understand the ThinkSystem 7500 MAX Mixed Use NVMe SSDs offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the 7500 MAX SSDs and consider their use in IT solutions.
| Hard drive | |
|---|---|
| SSD capacity | 6.4 TB |
| Memory type | 3D TLC NAND |
| Data transmission | |
| Random write (4KB) | 400000 IOPS |
| Random read (4KB) | 1100000 IOPS |
| Write latency | 15 µs |
| Read latency | 70 µs |
| Security | |
| Security algorithms | TCG Opal 2.0 |
| Endurance | |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Features | |
| Interface | U.3 |
| Component for | Server |
| NVMe | Yes |
| End-to-End Data Protection | Yes |
| Hot-swap | Yes |
| SSD capacity | 6.4 TB |
| Security algorithms | TCG Opal 2.0 |
| S.M.A.R.T. support | Yes |
| Memory type | 3D TLC NAND |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Random write (4KB) | 400000 IOPS |
| Random read (4KB) | 1100000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 15 µs |
| Read latency | 70 µs |
| Hardware encryption | Yes |
| Certification | CE (Europe): EN55032, EN55024 Class B, RoHS FCC: CFR Title 47, Part 15, Class B UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013 BSMI (Taiwan): approval to CNS 13438, Class B, CNS 15663 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KC RRL (Korea): approval to KN32 Class B, KN 35 Class B W.E.E.E.: Compliance with EU WEEE directive 2012/19/EC. TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): ICES-003 Class B Morocco: EN55032, EN55024 Class B UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139) UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS |
| SSD form factor | 2.5" |
| Drive writes per day (DWPD) | 3 |
| Power | |
| Power consumption (write) | 17.5 W |
| Power consumption (read) | 13.5 W |
| Certificates | |
| Certification | CE (Europe): EN55032, EN55024 Class B, RoHS FCC: CFR Title 47, Part 15, Class B UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013 BSMI (Taiwan): approval to CNS 13438, Class B, CNS 15663 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KC RRL (Korea): approval to KN32 Class B, KN 35 Class B W.E.E.E.: Compliance with EU WEEE directive 2012/19/EC. TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): ICES-003 Class B Morocco: EN55032, EN55024 Class B UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139) UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS |
| Performance | |
| Interface | U.3 |
| Component for | Server |
| NVMe | Yes |
| End-to-End Data Protection | Yes |
| Hot-swap | Yes |
| SSD capacity | 6.4 TB |
| Security algorithms | TCG Opal 2.0 |
| S.M.A.R.T. support | Yes |
| Memory type | 3D TLC NAND |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Random write (4KB) | 400000 IOPS |
| Random read (4KB) | 1100000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 15 µs |
| Read latency | 70 µs |
| Hardware encryption | Yes |
| Design | |
| Component for | Server |
| Certification | CE (Europe): EN55032, EN55024 Class B, RoHS FCC: CFR Title 47, Part 15, Class B UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013 BSMI (Taiwan): approval to CNS 13438, Class B, CNS 15663 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KC RRL (Korea): approval to KN32 Class B, KN 35 Class B W.E.E.E.: Compliance with EU WEEE directive 2012/19/EC. TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): ICES-003 Class B Morocco: EN55032, EN55024 Class B UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139) UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS |
| SSD form factor | 2.5" |
| Weight & dimensions | |
| Width | 70 mm |
| Weight | 200 g |
| Height | 15 mm |
| Depth | 100 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Non-operating shock | 1500 G |
| Maximum operating altitude | 3050 m |
| Technical details | |
| Interface | U.3 |
| Hot-swap | Yes |
| S.M.A.R.T. support | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Non-operating shock | 1500 G |
| Maximum operating altitude | 3050 m |
| Hardware encryption | Yes |
| SSD form factor | 2.5" |
| Other features | |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
