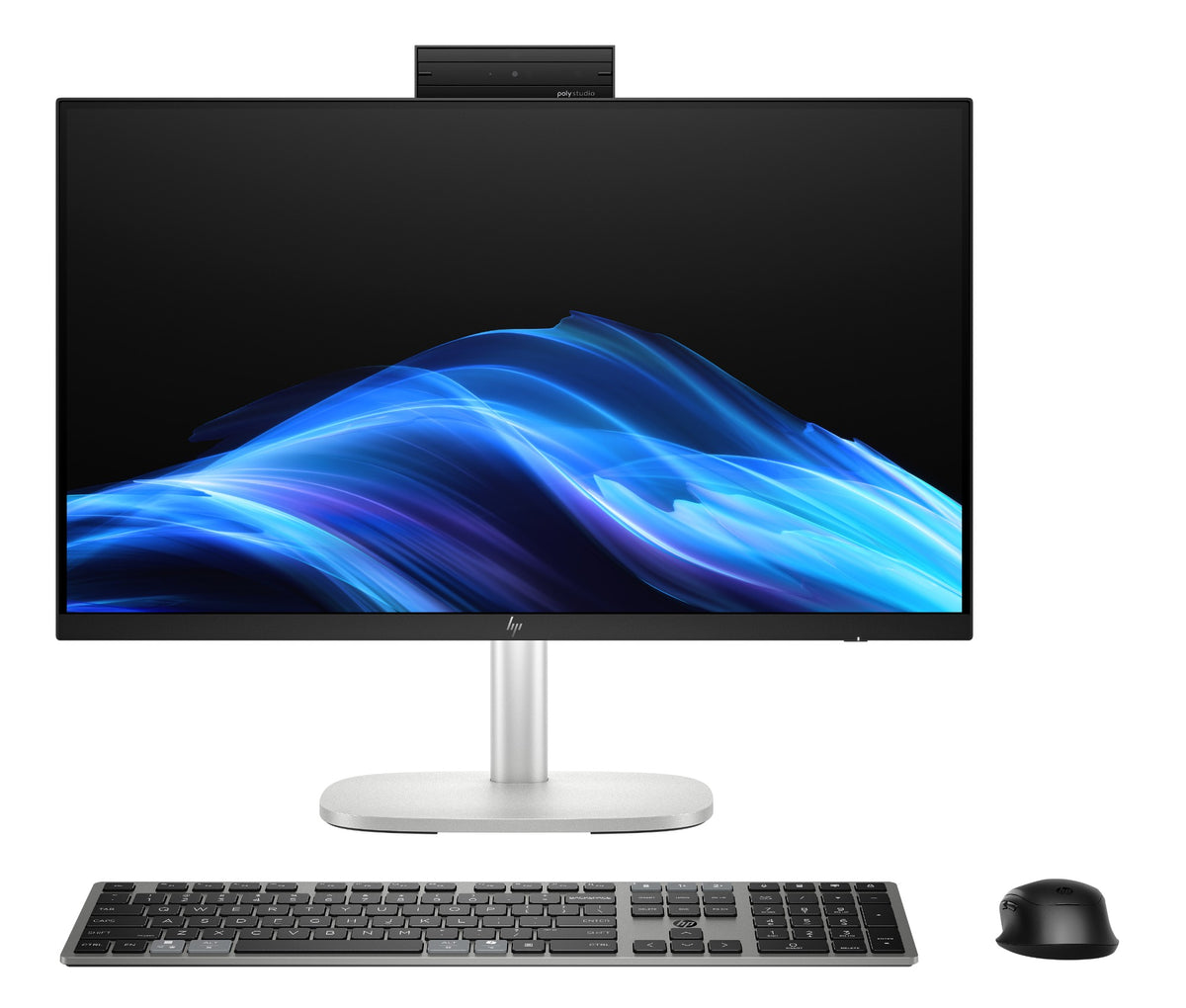

HP EliteStudio 8 AiO G1i U523516GB/512PC Intel Core Ultra 5 235 60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Wi-Fi 7 (802.11be) AI PC Silver
Product overview & specifications
HP EliteStudio 8 AiO G1i U523516GB/512PC, 60.5 cm (23.8"), Full HD, Intel Core Ultra 5, 16 GB, 512 GB, Windows 11 Pro
HP EliteStudio 8 AiO G1i U523516GB/512PC. Product type: All-in-One PC. Display diagonal: 60.5 cm (23.8"), HD type: Full HD, Display resolution: 1920 x 1080 pixels, Panel type: IPS. Processor family: Intel Core Ultra 5. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Built-in camera. Operating system installed: Windows 11 Pro. Product colour: Silver
| Display | |
|---|---|
| HD type | Full HD |
| Colour gamut | 99% |
| Panel type | IPS |
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| Display brightness | 250 cd/m² |
| RGB colour space | sRGB |
| Low Blue Light technology | Yes |
| Anti-glare screen | Yes |
| Processor | |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor cache type | L3 |
| Processor boost frequency | 5 GHz |
| Processor family | Intel Core Ultra 5 |
| Processor model | 235 |
| Processor cores | 14 |
| Processor threads | 14 |
| Processor cache | 24 MB |
| Motherboard chipset | Intel® Q870 |
| Processor manufacturer | Intel |
| Processor base power | 65 W |
| Maximum turbo power | 121 W |
| Efficient-core base frequency | 2.9 GHz |
| Performance-core base frequency | 3.4 GHz |
| Efficient-core Max Turbo Frequency | 4.4 GHz |
| Performance-core Max Turbo Frequency | 5 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 27 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 6 TOPs |
| Memory | |
| Memory form factor | DIMM/SO-DIMM |
| Internal memory | 16 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 5600 MHz |
| Memory data transfer rate | 5600 MT/s |
| Hard drive | |
| Number of storage drives installed | 1 |
| Storage media | SSD |
| Total storage capacity | 512 GB |
| Storage | |
| Number of storage drives installed | 1 |
| Storage media | SSD |
| Total storage capacity | 512 GB |
| Optical drive type | No |
| SSD interface | PCI Express |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD form factor | M.2 |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® Graphics |
| On-board GPU manufacturer | Intel |
| Audio | |
| Audio chip | Realtek ALC3252 |
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
| Camera | |
| Built-in camera | Yes |
| Total megapixels | 5 MP |
| Infrared (IR) camera | Yes |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| WLAN controller model | Intel Wi-Fi 7 BE200 |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB4 Gen 3x2 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 1 |
| Technical details | |
| Product type | All-in-One PC |
| Intel® Turbo Boost Technology | Yes |
| Product colour | Silver |
| Memory module type | SODIMM |
| Sustainable technologies and materials | 5% REE recycled magnets in system; 20% recycled metal in enclosure; 60% recycled plastic in system; 25% ocean-bound plastic in thermal fan module; 5% ocean-bound plastic in speaker enclosure; 35% recycled indium and 20% recycled glass in display panels |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, EPEAT Gold, EPEAT Climate +, TCO10 |
| Weight | 6.3 kg |
| Design | |
| Product colour | Silver |
| Colour name | Pike silver |
| Country of origin | Czech Republic |
| Introduction year | 2025 |
| Performance | |
| Market positioning | Business |
| Product type | All-in-One PC |
| Motherboard chipset | Intel® Q870 |
| Intel® vPro™ Platform Eligibility | Yes |
| Software | |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
| Intel® Turbo Boost Technology | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Brand-specific features | |
| HP segment | Business |
| HP Support Assistant | Yes |
| HP Software provided | HP Notifications; HP PC Hardware Diagnostics UEFI; HP PC Hardware Diagnostics Windows |
| HP Artificial Intelligence | AI PC |
| Power | |
| AC adapter power | 280 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Multimedia | |
| Built-in camera | Yes |
| Total megapixels | 5 MP |
| Infrared (IR) camera | Yes |
| Weight & dimensions | |
| Package width | 750 mm |
| Package depth | 195 mm |
| Package height | 480 mm |
| Package weight | 15.4 kg |
| Width (with stand) | 539.6 mm |
| Depth (with stand) | 319.4 mm |
| Height (with stand) | 52.5 mm |
| Weight (with stand) | 6.3 kg |
| Weight | 6.3 kg |
| Packaging data | |
| Package width | 750 mm |
| Package depth | 195 mm |
| Package height | 480 mm |
| Package weight | 15.4 kg |
| Features | |
| Country of origin | Czech Republic |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Sustainability | |
| Sustainable technologies and materials | 5% REE recycled magnets in system; 20% recycled metal in enclosure; 60% recycled plastic in system; 25% ocean-bound plastic in thermal fan module; 5% ocean-bound plastic in speaker enclosure; 35% recycled indium and 20% recycled glass in display panels |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, EPEAT Gold, EPEAT Climate +, TCO10 |
| Logistics data | |
| UNSPSC-code | 43211507 |
| Other features | |
| On-board graphics card | Yes |
| SSD interface | PCI Express |
| SSD capacity | 512 GB |
| Processor manufacturer | Intel |
| Power supply | 280 W |
| Number of SSDs installed | 1 |
| Display included | Yes |
| Display diagonal (metric) | 60.5 cm |
| Chassis type | All-in-One |
| Memory module type | SODIMM |
| Infrared (IR) camera | Yes |
| Country of origin | Czech Republic |
| Intel® vPro™ Platform Eligibility | Yes |
