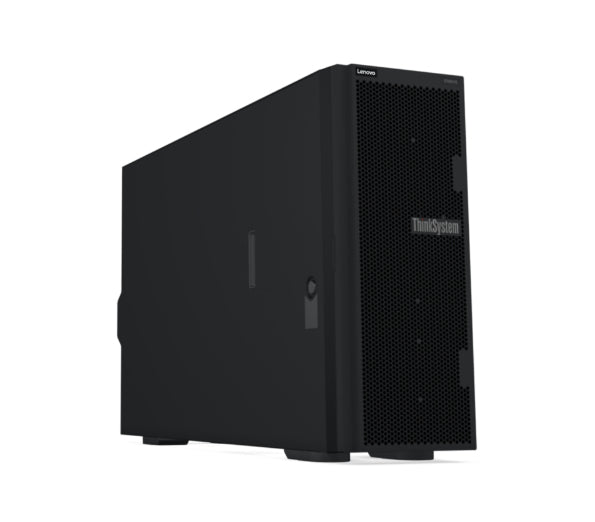

Lenovo ThinkSystem ST650 V2 server Tower (4U) Intel Xeon Silver 4309Y 2.8 GHz 32 GB DDR4-SDRAM 750 W
Product overview & specifications
ThinkSystem ST650 V2 Tower Server
Enterprise performance and flexibility. Compact footprint.
ThinkSystem ST650 V2 is a highly capable 4U tower server that provides the performance and reliability you expect from the data center, optimized for office environments.Named CRN's Product of the Year for 2022.
Specifications
| Processor | |
|---|---|
| Processor cache | 12 MB |
| Processor frequency | 2.8 GHz |
| Processor boost frequency | 3.6 GHz |
| Number of processors installed | 1 |
| Processor model | 4309Y |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Memory | |
| Internal memory | 32 GB |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory clock speed | 3200 MHz |
| Internal memory type | DDR4-SDRAM |
| Storage | |
| Supported RAID controllers | 940-8i 4GB |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Graphics | |
| Maximum graphics card memory | 16 MB |
| Network | |
| LAN controller | Broadcom 57416 |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| Design | |
| Rack mounting | Yes |
| Chassis type | Tower (4U) |
| Product colour | Black |
| Performance | |
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
| Performance management | XClarity Enterprise |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Operating system installed | No |
| Harmonized System (HS) code | 84714100 |
| Software | |
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
| Operating system installed | No |
| Power | |
| Number of redundant power supplies installed | 1 |
| Redundant power supply (RPS) support | Yes |
| Power supply | 750 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 �C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Operating temperature (T-T) | 5 - 45 �C |
| Operating altitude | 0 - 3050 m |
| Management features | |
| Performance management | XClarity Enterprise |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Technical details | |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Rack mounting | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Chassis type | Tower (4U) |
| Weight & dimensions | |
| Width | 175 mm |
| Height | 462 mm |
| Depth | 734 mm |
Lenovo ThinkSystem ST650 V2 server Tower (4U) Intel Xeon Silver 4309Y 2.8 GHz 32 GB DDR4-SDRAM 750 W
£5,212.36
