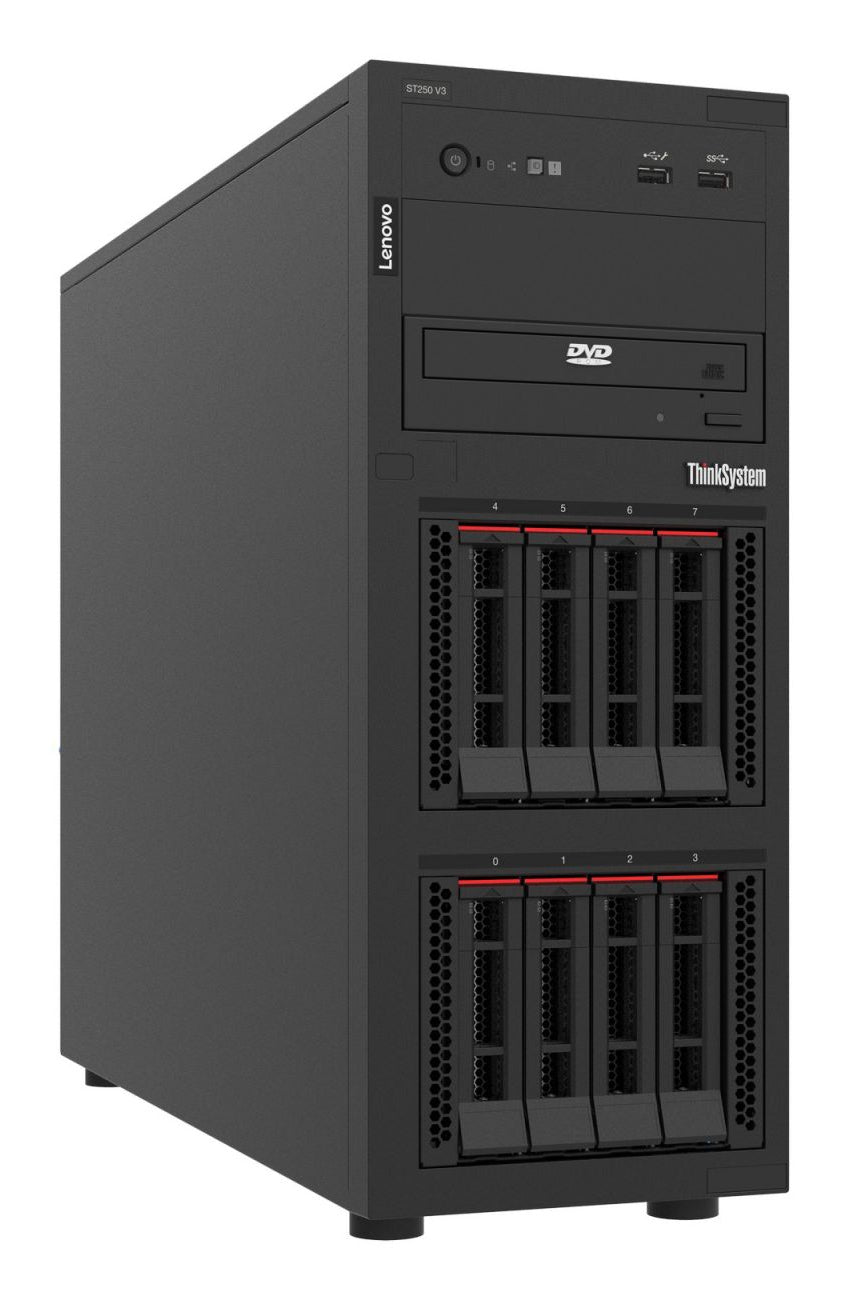

Lenovo ThinkSystem ST250 V3 server Tower Intel® Xeon® 6353P 2.7 GHz 32 GB DDR5-SDRAM 800 W
Product overview & specifications
Intel Xeon 6353P (24MB Cache, 2.7GHz), 32GB DDR5-SDRAM (4800MHz), LAN (Broadcom 5720), 545-8i, 800W
The Lenovo ThinkSystem ST250 V3 is a mainstream 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2400 Series processors, formerly codenamed "Raptor Lake".
This product guide provides essential presales information to understand the ThinkSystem ST250 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST250 V3 and consider its use in IT solutions.
Specifications
| Processor | |
|---|---|
| Processor cache | 24 MB |
| Processor frequency | 2.7 GHz |
| Processor boost frequency | 5.4 GHz |
| Number of processors installed | 1 |
| Processor model | 6353P |
| Processor cores | 8 |
| Processor manufacturer | Intel |
| Processor family | Intel� Xeon� |
| Performance cores | 8 |
| Memory | |
| Internal memory | 32 GB |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 4800 MHz |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| ECC | Yes |
| Storage | |
| Supported RAID controllers | 545-8i |
| Supported storage drive interfaces | SAS, Serial ATA |
| Hot-swap | Yes |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10, 50 |
| Internal drive bays | 8 |
| Graphics | |
| Maximum graphics card memory | 16 MB |
| On-board graphics card | Yes |
| Network | |
| LAN controller | Broadcom 5720 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Design | |
| Chassis type | Tower |
| Product colour | Black |
| Performance | |
| Compatible operating systems | Microsoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
| Performance management | XCC Platinum |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Software | |
| Compatible operating systems | Microsoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
| Power | |
| Number of redundant power supplies supported | 1 |
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 �C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Operating temperature (T-T) | 5 - 45 �C |
| Operating altitude | 0 - 3050 m |
| Certificates | |
| 80 PLUS certification | 80 PLUS Platinum |
| Management features | |
| Performance management | XCC Platinum |
| Technical details | |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Chassis type | Tower |
| Supported storage drives form factor (rear) | 2.5'' |
| Weight & dimensions | |
| Width | 176 mm |
| Height | 444 mm |
| Depth | 578 mm |
