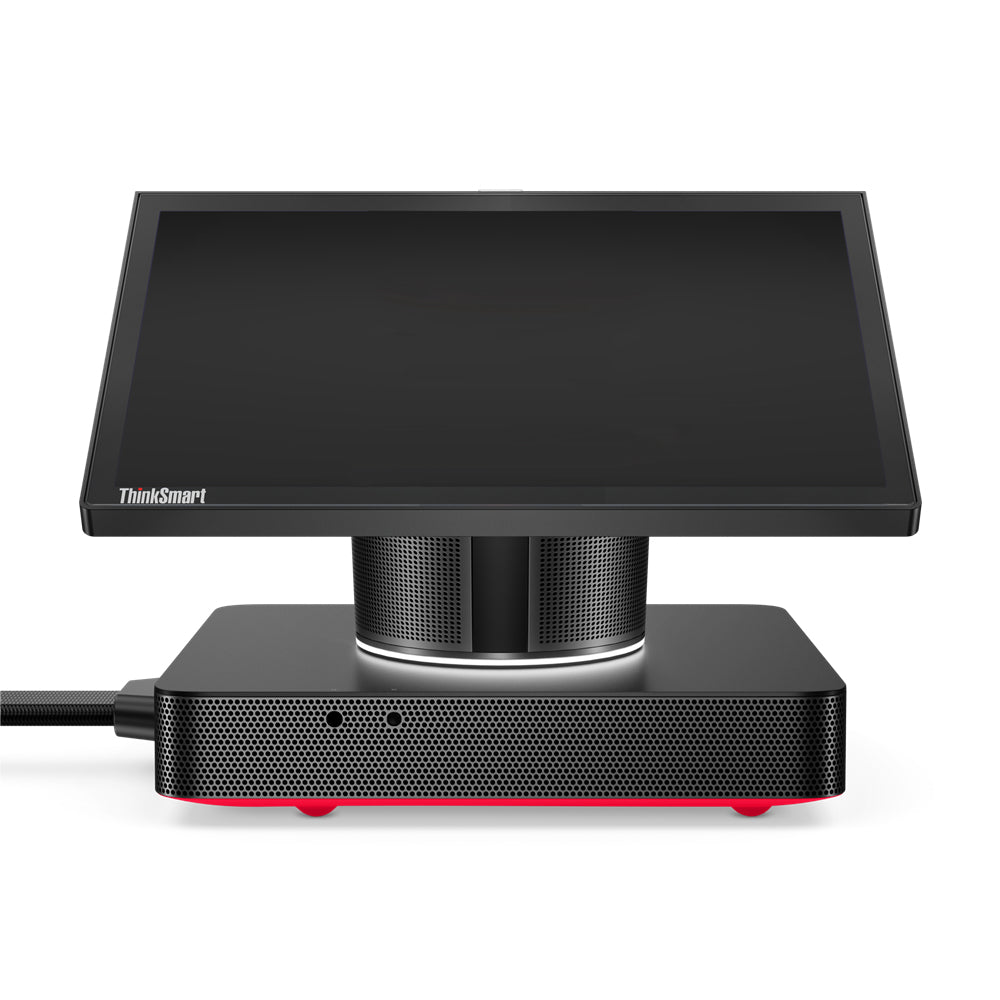

Lenovo ThinkSmart Hub Intel® Core™ i5 i5-8365UE 25.6 cm (10.1") 1920 x 1200 pixels Touchscreen All-in-One PC 16 GB DDR4-SDRAM 256 GB SSD Windows 11 IoT Enterprise SAC Wi-Fi 5 (802.11ac) Black
Product overview & specifications
Intel Core i5-8365UE (6MB Cache, 1.6GHz), 16GB DDR4-SDRAM, 256GB SSD, 25.7 cm (10.1") Full HD 1920 x 1200 Touch, Intel UHD Graphics 620, LAN, WLAN, Bluetooth, Windows 11 IoT Enterprise SAC 64-bit
Specifications
| Display | |
|---|---|
| HD type | Full HD |
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | Yes |
| Display brightness | 320 cd/m� |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Processor | |
| Processor generation | 8th gen Intel� CoreT i5 |
| Configurable TDP-down | 12.5 W |
| Processor cache type | Smart Cache |
| Configurable TDP-down frequency | 1.1 GHz |
| Processor frequency | 1.6 GHz |
| Processor boost frequency | 4.1 GHz |
| Processor family | Intel� CoreT i5 |
| Processor model | i5-8365UE |
| Processor cores | 4 |
| Processor cache | 6 MB |
| Motherboard chipset | Intel SoC |
| Processor manufacturer | Intel |
| Configurable TDP-up frequency | 1.8 GHz |
| Configurable TDP-up | 25 W |
| Memory | |
| Memory form factor | On-board |
| Internal memory | 16 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Hard drive | |
| Number of storage drives installed | 1 |
| Storage media | SSD |
| Total storage capacity | 256 GB |
| Storage | |
| Number of storage drives installed | 1 |
| Storage media | SSD |
| Total storage capacity | 256 GB |
| Optical drive type | No |
| Card reader integrated | No |
| SSD interface | PCI Express 3.0 |
| SSD capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD form factor | M.2 |
| Total SSDs capacity | 256 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel� UHD Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel� UHD Graphics 620 |
| On-board GPU manufacturer | Intel |
| Audio | |
| Number of speakers | 4 |
| Audio system | HD |
| Built-in speaker(s) | Yes |
| RMS rated power | 12 W |
| Built-in microphone | Yes |
| Camera | |
| Built-in camera | No |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| USB4 Gen 3x2 ports quantity | 0 |
| Technical details | |
| Product type | All-in-One PC |
| Product colour | Black |
| Compliance certificates | RoHS |
| Security | |
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
| HDD user password | Yes |
| Cable lock slot | Yes |
| BIOS password | Yes |
| Design | |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Cable lock slot | Yes |
| Performance | |
| Product type | All-in-One PC |
| Motherboard chipset | Intel SoC |
| Trusted Platform Module (TPM) | Yes |
| HDD user password | Yes |
| BIOS password | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system language | English, Swedish, Finnish, Danish, Norwegian |
| Operating system installed | Windows 11 IoT Enterprise SAC |
| Operating system architecture | 64-bit |
| Processor special features | |
| CPU configuration (max) | 1 |
| Power | |
| AC adapter power | 90 W |
| Multimedia | |
| Built-in camera | No |
| Weight & dimensions | |
| Width (with stand) | 240 mm |
| Depth (with stand) | 200 mm |
| Height (with stand) | 185.3 mm |
| Weight (with stand) | 2.45 kg |
| Certificates | |
| Certification | T�V Rheinland Ultra Low Noise |
| Compliance certificates | RoHS |
| Packaging content | |
| Mouse included | No |
| Keyboard included | No |
| Other features | |
| On-board graphics card | Yes |
| SSD interface | PCI Express 3.0 |
| SSD capacity | 256 GB |
| Processor manufacturer | Intel |
| Number of SSDs installed | 1 |
