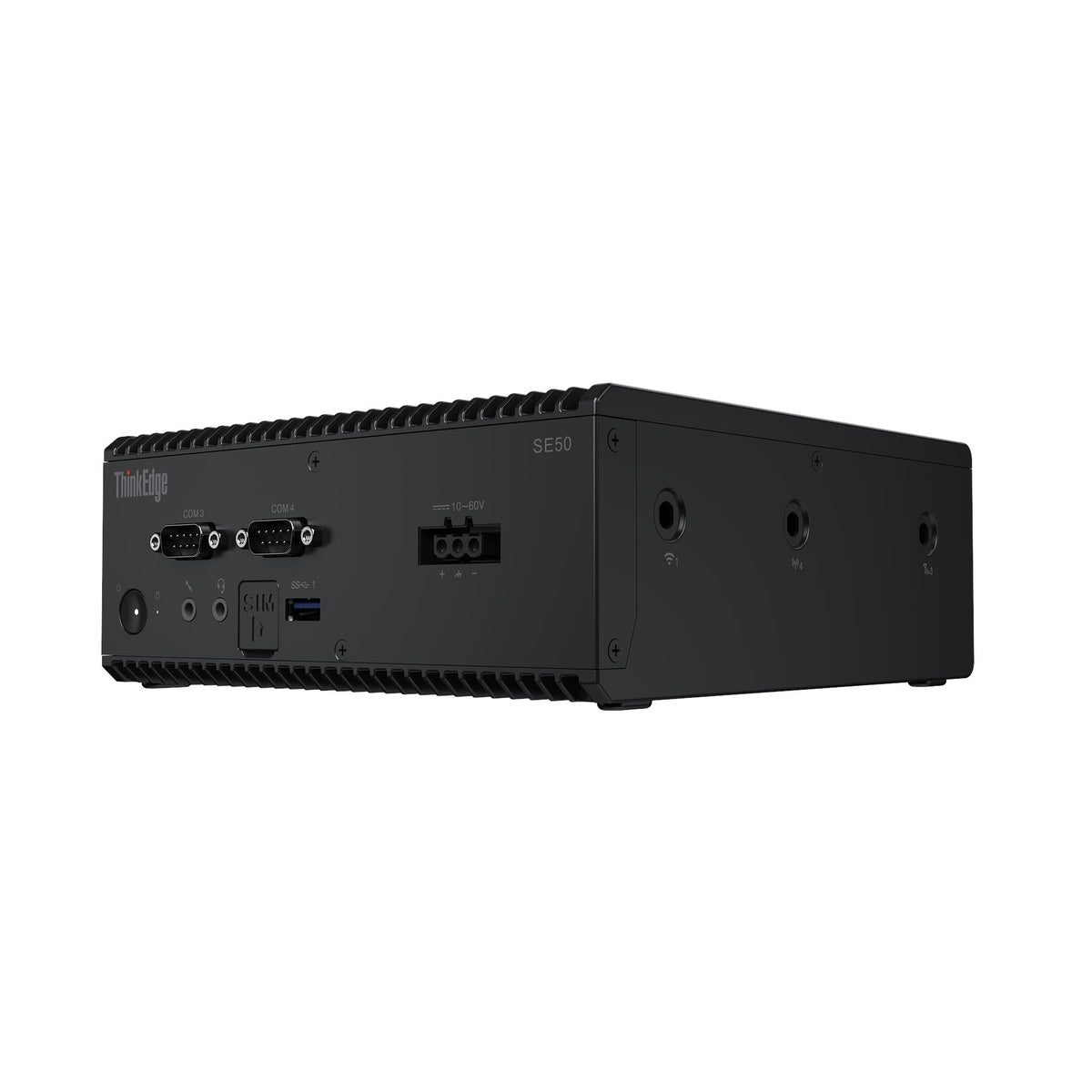

Lenovo ThinkEdge SE50 Intel® Core™ i5 i5-8365UE 8 GB DDR4-SDRAM 128 GB SSD Windows 11 IoT Enterprise Mini PC Black
Product overview & specifications
Intel Core i5-8365UE (6MB Cache, 1.6GHz), 8GB DDR4-SDRAM, 128GB SSD, Intel UHD Graphics 620, LAN, WLAN, Bluetooth, Windows 11 IoT Enterprise 64-bit
Power and reliability at the edge
- Fanless design (0�-50�C operating temperature)
- Diverse I/O port support
- DIN rail, wall mount support
- High-performing computing and memory�
- Microsoft� Azure IoT Edge Certified
- AWS IoT Greengrass Certified
Specifications
| Processor | |
|---|---|
| Processor generation | 8th gen Intel� CoreT i5 |
| Processor cache type | Smart Cache |
| Processor cache | 6 MB |
| Processor frequency | 1.6 GHz |
| Processor model | i5-8365UE |
| Number of processors installed | 1 |
| Processor manufacturer | Intel |
| Processor boost frequency | 4.1 GHz |
| Processor threads | 8 |
| Processor cores | 4 |
| Processor family | Intel� CoreT i5 |
| Memory | |
| Memory layout (slots x size) | 1 x 8 GB |
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory channels | Dual-channel |
| Storage | |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Optical drive type | No |
| SSD interface | PCI Express 3.0 |
| SSD capacity | 128 GB |
| Number of SSDs installed | 1 |
| Total storage capacity | 128 GB |
| SSD form factor | M.2 |
| Total SSDs capacity | 128 GB |
| NVMe | Yes |
| M.2 SSD size | 2242 (22 x 42 mm) |
| Graphics | |
| Discrete graphics card | No |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card family | Intel� UHD Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel� UHD Graphics 620 |
| On-board GPU manufacturer | Intel |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| USB 2.0 ports quantity | 2 |
| Serial ports quantity | 6 |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DisplayPorts quantity | 1 |
| Technical details | |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Product colour | Black |
| Chassis type | Mini PC |
| Placement supported | Horizontal |
| Motherboard chipset | Intel SoC |
| Compliance certificates | RoHS, WEEE |
| Design | |
| Product colour | Black |
| Chassis type | Mini PC |
| Placement supported | Horizontal |
| Performance | |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Motherboard chipset | Intel SoC |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system language | English, Swedish, Finnish, Danish, Norwegian |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 IoT Enterprise |
| Operational conditions | |
| Operating altitude | 0 - 3048 m |
| Storage temperature (T-T) | -40 - 60 �C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 35 �C |
| Non-operating altitude | 0 - 12192 m |
| Certificates | |
| Certification | Low Halogen REACH RoHS compliant TED (ECO-declaration) WEEE |
| Compliance certificates | RoHS, WEEE |
| Weight & dimensions | |
| Width | 179 mm |
| Depth | 182.9 mm |
| Height | 72 mm |
| Weight | 2.98 kg |
| Packaging content | |
| Mouse included | Yes |
| Display included | No |
| Keyboard included | Yes |
| Mouse connectivity | Wired |
| Keyboard connectivity | Wired |
| Display | |
| Display included | No |
| Other features | |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
