Lenovo ThinkEdge SE10 Intel Atom® x6425RE 8 GB DDR4-SDRAM 256 GB SSD Windows 11 IoT Enterprise Mini PC Black
Product overview & specifications
Intel Atom x6425RE (1.5MB Cache, 1.9GHz), 8GB DDR4-SDRAM, 256GB SSD, Intel UHD Graphics, LAN, WLAN, Bluetooth, Windows 11 IoT Enterprise
Specifications
| Processor | |
|---|---|
| Processor cache | 1.5 MB |
| Processor frequency | 1.9 GHz |
| Processor model | x6425RE |
| Number of processors installed | 1 |
| Processor manufacturer | Intel |
| Processor threads | 4 |
| Processor cores | 4 |
| Processor family | Intel Atom� |
| Memory | |
| Memory layout (slots x size) | 1 x 8 GB |
| Internal memory | 8 GB |
| Maximum internal memory | 32 GB |
| Memory slots | 2x SO-DIMM |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory channels | Dual-channel |
| Storage | |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Optical drive type | No |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 256 GB |
| Number of SSDs installed | 1 |
| Total storage capacity | 256 GB |
| SSD form factor | M.2 |
| Total SSDs capacity | 256 GB |
| NVMe | Yes |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel� UHD Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel� UHD Graphics |
| On-board GPU manufacturer | Intel |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Ethernet LAN data rates | 2500 Mbit/s |
| WLAN controller model | MediaTek MT7921 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller manufacturer | MediaTek |

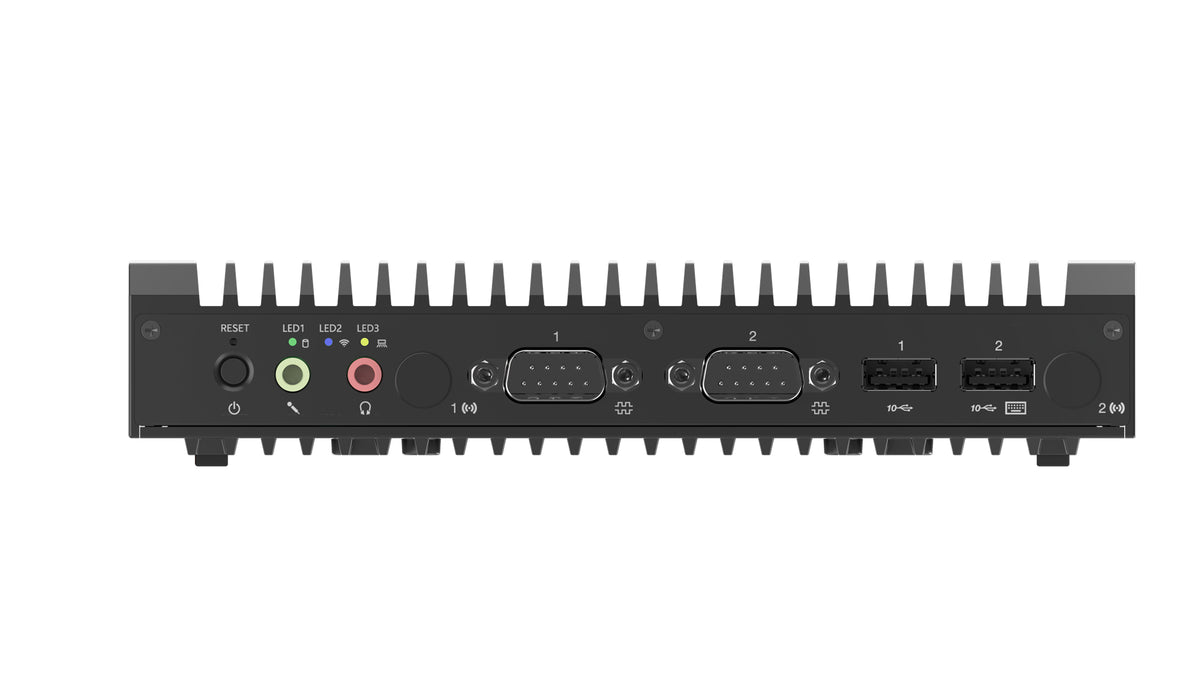

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI version | 1.4b |
| USB 2.0 ports quantity | 2 |
| Serial ports quantity | 2 |
| Microphone in | Yes |
| Line-out | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Technical details | |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Product colour | Black |
| Chassis type | Mini PC |
| Placement supported | Horizontal |
| Motherboard chipset | Intel SoC |
| Box contents | IP50 Dust Cover Kits |
| Compliance certificates | RoHS |
| Design | |
| VESA mounting | Yes |
| Volume | 0.8 L |
| Product colour | Black |
| Chassis type | Mini PC |
| Placement supported | Horizontal |
| Colour name | Black (SE10) |
| Performance | |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Motherboard chipset | Intel SoC |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system language | English, Swedish, Finnish, Danish, Norwegian |
| Operating system installed | Windows 11 IoT Enterprise |
| Power | |
| Power supply input voltage | 100 - 240 V |
| Power supply | 65 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 �C |
| Operating temperature (T-T) | 0 - 50 �C |
| Certificates | |
| Certification | ErP Lot 6 Low Halogen RoHS compliant REACH TED (ECO-declaration) WEEE Microsoft Azure IoT Edge certified AWS IoT Greengrass certified Ubuntu Core certified Ubuntu Server certified Red Hat Enterprise Linux certified |
| Low halogen | Yes |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS |
| Ergonomics | |
| VESA mounting | Yes |
| Weight & dimensions | |
| Volume | 0.8 L |
| Width | 179 mm |
| Depth | 135 mm |
| Height | 34.5 mm |
| Weight | 1.5 kg |
| Packaging content | |
| Mouse included | No |
| Display included | No |
| Keyboard included | No |
| Display | |
| Display included | No |
| Certification | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Other features | |
| VESA mounting | Yes |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
