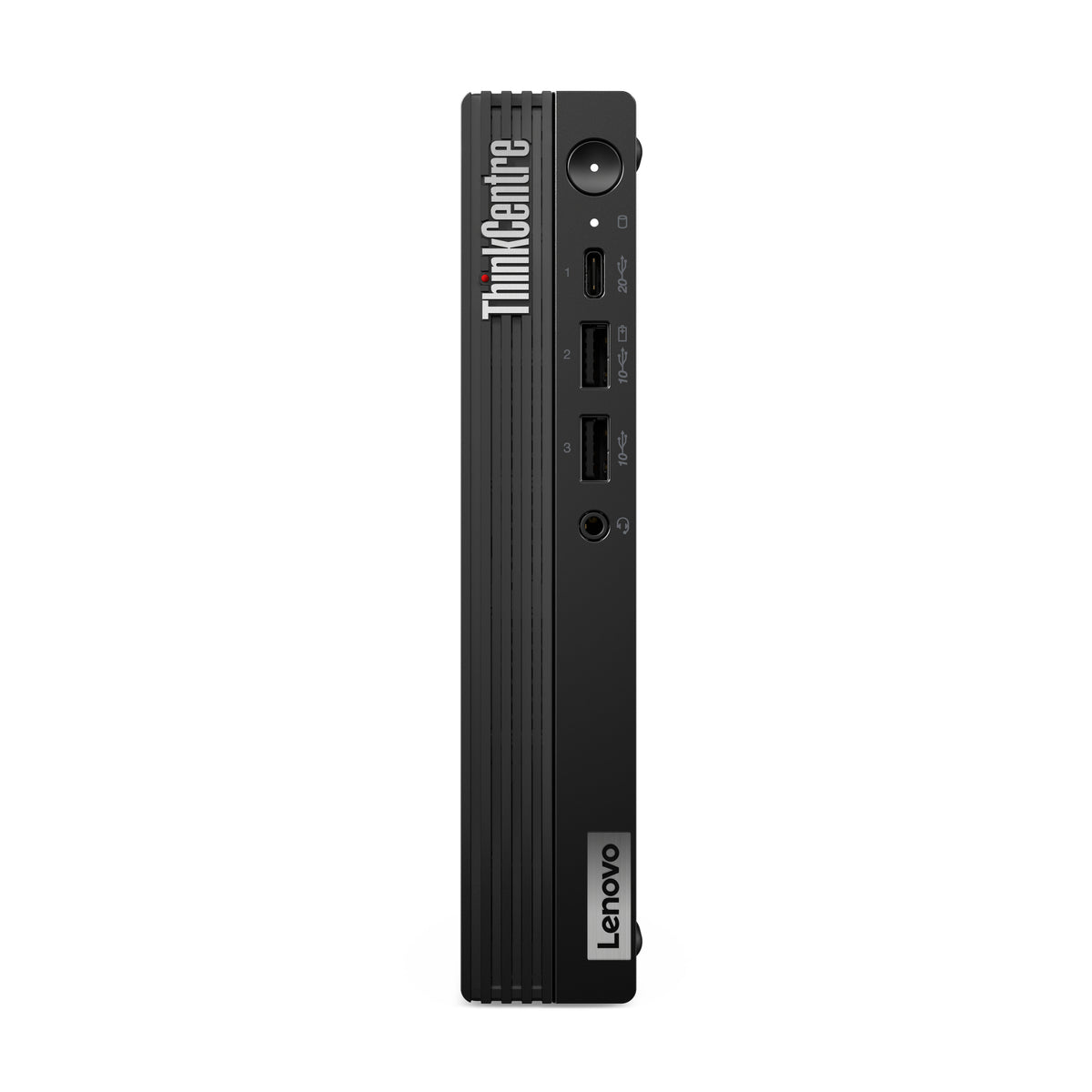

Lenovo ThinkCentre M90q Gen 5 Intel® Core™ i7 i7-14700 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
Product overview & specifications
Intel Core i7-14700, 20C (8P + 12E)/28T, Max Turbo up to 5.4GHz, P-core 2.1/5.3GHz, E-core 1.5/4.2GHz, 33MB, 1x 16GB SO-DIMM DDR5-5600, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, Intel UHD Graphics 770, Windows 11 Pro
Tiny Desktop With Heavyweight Power
- Multilevel security & manageability with up to Intel vPro� Enterprise
- Removable dust shield to assist with upkeep & extend the lifecycle of the system
- Highly configurable compact PC with customizable expansion slots
- Ideal for healthcare, retail, & finance with support for up to 4 monitors
Specifications
| Processor | |
|---|---|
| Processor generation | Intel� CoreT i7 (14th gen) |
| Processor cache type | Smart Cache |
| Processor cache | 33 MB |
| Processor model | i7-14700 |
| Number of processors installed | 1 |
| Processor manufacturer | Intel |
| Processor boost frequency | 5.4 GHz |
| Processor threads | 28 |
| Processor cores | 20 |
| Processor family | Intel� CoreT i7 |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Processor base power | 65 W |
| Maximum turbo power | 219 W |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Memory | |
| Memory layout (slots x size) | 1 x 16 GB |
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5600 MHz |
| Storage | |
| Storage media | SSD |
| Optical drive type | No |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Card reader integrated | No |
| Total storage capacity | 512 GB |
| SSD form factor | M.2 |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel� UHD Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel UHD Graphics 770 |
| On-board GPU manufacturer | Intel |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| HDMI version | 2.1 |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Technical details | |
| Cable lock slot type | Kensington |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Product colour | Black |
| Chassis type | Mini PC |
| Audio system | High Definition Audio |
| Cable lock slot | Yes |
| Motherboard chipset | Intel Q670 |
| Design | |
| Volume | 1 L |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Chassis type | Mini PC |
| Cable lock slot | Yes |
| Colour name | Black |
| Performance | |
| Audio chip | Realtek ALC233 |
| Number of speakers | 1 |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Audio system | High Definition Audio |
| Motherboard chipset | Intel Q670 |
| Software | |
| Operating system language | English |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Power | |
| Power supply input frequency | 50/60 Hz |
| Power supply input voltage | 100 - 240 V |
| Power supply | 230 W |
| Certificates | |
| Certification | ENERGY STAR,TCO,EPEAT Gold,RoHS |
| Weight & dimensions | |
| Volume | 1 L |
| Width | 179 mm |
| Depth | 182.9 mm |
| Height | 36.5 mm |
| Weight | 1.25 kg |
| Packaging content | |
| Mouse included | Yes |
| Display included | No |
| Keyboard included | Yes |
| Mouse connectivity | Wired |
| Keyboard connectivity | Wired |
| Display | |
| Display included | No |
| Other features | |
| Number of speakers | 1 |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
