Lenovo 4XB7A13970 internal solid state drive 2.5" 3.2 TB PCI Express 4.0 3D TLC NAND NVMe
Lenovo 4XB7A13970 internal solid state drive 2.5" 3.2 TB PCI Express 4.0 3D TLC NAND NVMe

Lenovo 4XB7A13970 internal solid state drive 2.5" 3.2 TB PCI Express 4.0 3D TLC NAND NVMe

BrandLenovo
SKU / Part number4XB7A13970
Need a bulk quote or product advice?
Speak to our team about your requirements.
Contact sales →
Product overview & specifications

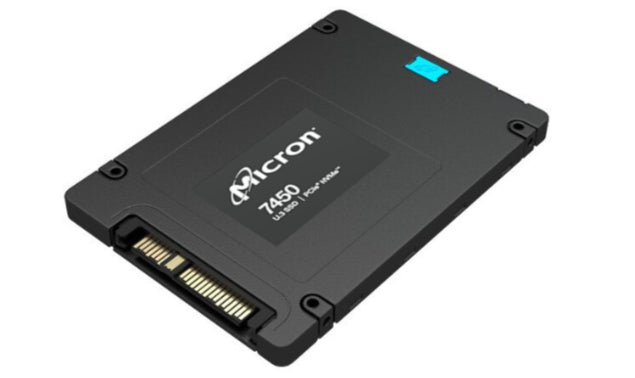

ThinkSystem 2.5" U.3 7450 MAX 3.2TB Mixed Use NVMe PCIe 4.0 x4 HS SSD

The ThinkSystem 7450 MAX Mixed Use NVMe SSDs are advanced data center SSDs optimized for mixed read-write performance, endurance, and strong data protection for Lenovo servers. With a PCIe 4.0 x4 interface, they are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. Now with SED encryption as standard, these drives help ensure data security, even when the drive is removed from the server.

The ThinkSystem 7450 MAX Mixed Use NVMe SSDs are advanced data center SSDs optimized for mixed read-write performance, endurance, and strong data protection for Lenovo servers. With a PCIe 4.0 x4 interface, they are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. Now with SED encryption as standard, these drives help ensure data security, even when the drive is removed from the server.

Lenovo Mixed Used SSDs like the 7450 MAX SSDs are suitable for mixed read-write and general-purpose data center workloads, however their NVMe PCIe interface means the drives also offer high performance. Overall, these SSDs provide outstanding IOPS/watt and cost/IOPS for enterprise solutions.

Self-encrypting drives (SEDs) provide benefits by encrypting data on-the-fly at the drive level with no performance impact, by providing instant secure erasure thereby making the data no longer readable, and by enabling auto-locking to secure active data if a drive is misplaced or stolen from a system while in use. These features are essential for many businesses, especially those storing customer data.

Specifications

Hard drive
SSD capacity 3.2 TB
Memory type 3D TLC NAND
Data transmission
Random write (4KB) 390000 IOPS
Random read (4KB) 1000000 IOPS
Write latency 15 �s
Read latency 80 �s
Endurance
Mean time between failures (MTBF) 2000000 h
Certificates
Certification CE (Europe): EN55032, EN55024 Class B, RoHS FCC: CFR Title 47, Part 15, Class B UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013 BSMI (Taiwan): approval to CNS 13438, Class B, CNS 15663 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KC RRL (Korea): approval to KN32 Class B, KN 35 Class B W.E.E.E.: Compliance with EU WEEE directive 2012/19/EC. TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): ICES-003 Class B Morocco: EN55032, EN55024 Class B UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139) UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS
Performance
Interface PCI Express 4.0
Component for Server/workstation
NVMe Yes
Hot-swap Yes
SSD capacity 3.2 TB
S.M.A.R.T. support Yes
Memory type 3D TLC NAND
Random write (4KB) 390000 IOPS
Random read (4KB) 1000000 IOPS
Mean time between failures (MTBF) 2000000 h
Write latency 15 �s
Read latency 80 �s
Hardware encryption Yes
Design
Component for Server/workstation
Certification CE (Europe): EN55032, EN55024 Class B, RoHS FCC: CFR Title 47, Part 15, Class B UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013 BSMI (Taiwan): approval to CNS 13438, Class B, CNS 15663 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KC RRL (Korea): approval to KN32 Class B, KN 35 Class B W.E.E.E.: Compliance with EU WEEE directive 2012/19/EC. TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): ICES-003 Class B Morocco: EN55032, EN55024 Class B UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139) UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS
SSD form factor 2.5"
Features
Interface PCI Express 4.0
Component for Server/workstation
NVMe Yes
Hot-swap Yes
SSD capacity 3.2 TB
S.M.A.R.T. support Yes
Memory type 3D TLC NAND
Random write (4KB) 390000 IOPS
Random read (4KB) 1000000 IOPS
Mean time between failures (MTBF) 2000000 h
Write latency 15 �s
Read latency 80 �s
Hardware encryption Yes
Certification CE (Europe): EN55032, EN55024 Class B, RoHS FCC: CFR Title 47, Part 15, Class B UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013 BSMI (Taiwan): approval to CNS 13438, Class B, CNS 15663 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KC RRL (Korea): approval to KN32 Class B, KN 35 Class B W.E.E.E.: Compliance with EU WEEE directive 2012/19/EC. TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): ICES-003 Class B Morocco: EN55032, EN55024 Class B UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139) UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS
SSD form factor 2.5"
Operational conditions
Operating temperature (T-T) 0 - 70 �C
Storage temperature (T-T) -40 - 85 �C
Operating relative humidity (H-H) 5 - 95%
Non-operating shock 1500 G
Non-operating vibration 20 G
Maximum operating altitude 3050 m
Technical details
Interface PCI Express 4.0
Hot-swap Yes
S.M.A.R.T. support Yes
Operating temperature (T-T) 0 - 70 �C
Storage temperature (T-T) -40 - 85 �C
Operating relative humidity (H-H) 5 - 95%
Non-operating shock 1500 G
Non-operating vibration 20 G
Maximum operating altitude 3050 m
Hardware encryption Yes
SSD form factor 2.5"
Weight & dimensions
Width 70 mm
Weight 70 g
Height 7 mm
Depth 100 mm
Lenovo 4XB7A13970 internal solid state drive 2.5" 3.2 TB PCI Express 4.0 3D TLC NAND NVMe

Lenovo 4XB7A13970 internal solid state drive 2.5" 3.2 TB PCI Express 4.0 3D TLC NAND NVMe

£749.69
Skip to product information
Lenovo 4XB7A13970 internal solid state drive 2.5" 3.2 TB PCI Express 4.0 3D TLC NAND NVMe

Lenovo 4XB7A13970 internal solid state drive 2.5" 3.2 TB PCI Express 4.0 3D TLC NAND NVMe

£749.69

ThinkSystem 2.5" U.3 7450 MAX 3.2TB Mixed Use NVMe PCIe 4.0 x4 HS SSD

The ThinkSystem 7450 MAX Mixed Use NVMe SSDs are advanced data center SSDs optimized for mixed read-write performance, endurance, and strong data protection for Lenovo servers. With a PCIe 4.0 x4 interface, they are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. Now with SED encryption as standard, these drives help ensure data security, even when the drive is removed from the server.

The ThinkSystem 7450 MAX Mixed Use NVMe SSDs are advanced data center SSDs optimized for mixed read-write performance, endurance, and strong data protection for Lenovo servers. With a PCIe 4.0 x4 interface, they are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. Now with SED encryption as standard, these drives help ensure data security, even when the drive is removed from the server.

Lenovo Mixed Used SSDs like the 7450 MAX SSDs are suitable for mixed read-write and general-purpose data center workloads, however their NVMe PCIe interface means the drives also offer high performance. Overall, these SSDs provide outstanding IOPS/watt and cost/IOPS for enterprise solutions.

Self-encrypting drives (SEDs) provide benefits by encrypting data on-the-fly at the drive level with no performance impact, by providing instant secure erasure thereby making the data no longer readable, and by enabling auto-locking to secure active data if a drive is misplaced or stolen from a system while in use. These features are essential for many businesses, especially those storing customer data.

Specifications

Hard drive
SSD capacity 3.2 TB
Memory type 3D TLC NAND
Data transmission
Random write (4KB) 390000 IOPS
Random read (4KB) 1000000 IOPS
Write latency 15 �s
Read latency 80 �s
Endurance
Mean time between failures (MTBF) 2000000 h
Certificates
Certification CE (Europe): EN55032, EN55024 Class B, RoHS FCC: CFR Title 47, Part 15, Class B UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013 BSMI (Taiwan): approval to CNS 13438, Class B, CNS 15663 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KC RRL (Korea): approval to KN32 Class B, KN 35 Class B W.E.E.E.: Compliance with EU WEEE directive 2012/19/EC. TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): ICES-003 Class B Morocco: EN55032, EN55024 Class B UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139) UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS
Performance
Interface PCI Express 4.0
Component for Server/workstation
NVMe Yes
Hot-swap Yes
SSD capacity 3.2 TB
S.M.A.R.T. support Yes
Memory type 3D TLC NAND
Random write (4KB) 390000 IOPS
Random read (4KB) 1000000 IOPS
Mean time between failures (MTBF) 2000000 h
Write latency 15 �s
Read latency 80 �s
Hardware encryption Yes
Design
Component for Server/workstation
Certification CE (Europe): EN55032, EN55024 Class B, RoHS FCC: CFR Title 47, Part 15, Class B UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013 BSMI (Taiwan): approval to CNS 13438, Class B, CNS 15663 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KC RRL (Korea): approval to KN32 Class B, KN 35 Class B W.E.E.E.: Compliance with EU WEEE directive 2012/19/EC. TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): ICES-003 Class B Morocco: EN55032, EN55024 Class B UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139) UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS
SSD form factor 2.5"
Features
Interface PCI Express 4.0
Component for Server/workstation
NVMe Yes
Hot-swap Yes
SSD capacity 3.2 TB
S.M.A.R.T. support Yes
Memory type 3D TLC NAND
Random write (4KB) 390000 IOPS
Random read (4KB) 1000000 IOPS
Mean time between failures (MTBF) 2000000 h
Write latency 15 �s
Read latency 80 �s
Hardware encryption Yes
Certification CE (Europe): EN55032, EN55024 Class B, RoHS FCC: CFR Title 47, Part 15, Class B UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013 BSMI (Taiwan): approval to CNS 13438, Class B, CNS 15663 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KC RRL (Korea): approval to KN32 Class B, KN 35 Class B W.E.E.E.: Compliance with EU WEEE directive 2012/19/EC. TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): ICES-003 Class B Morocco: EN55032, EN55024 Class B UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139) UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS
SSD form factor 2.5"
Operational conditions
Operating temperature (T-T) 0 - 70 �C
Storage temperature (T-T) -40 - 85 �C
Operating relative humidity (H-H) 5 - 95%
Non-operating shock 1500 G
Non-operating vibration 20 G
Maximum operating altitude 3050 m
Technical details
Interface PCI Express 4.0
Hot-swap Yes
S.M.A.R.T. support Yes
Operating temperature (T-T) 0 - 70 �C
Storage temperature (T-T) -40 - 85 �C
Operating relative humidity (H-H) 5 - 95%
Non-operating shock 1500 G
Non-operating vibration 20 G
Maximum operating altitude 3050 m
Hardware encryption Yes
SSD form factor 2.5"
Weight & dimensions
Width 70 mm
Weight 70 g
Height 7 mm
Depth 100 mm
