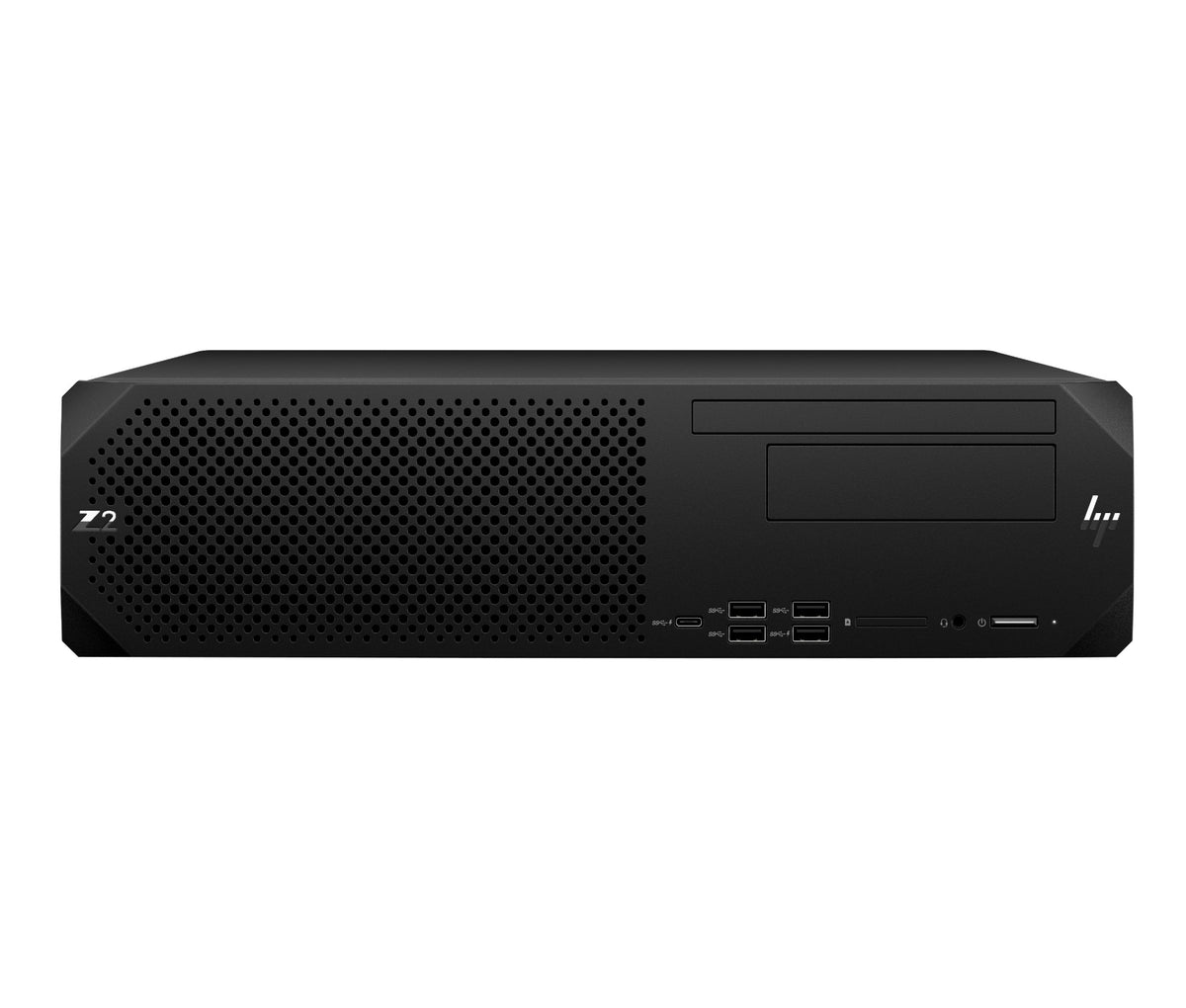

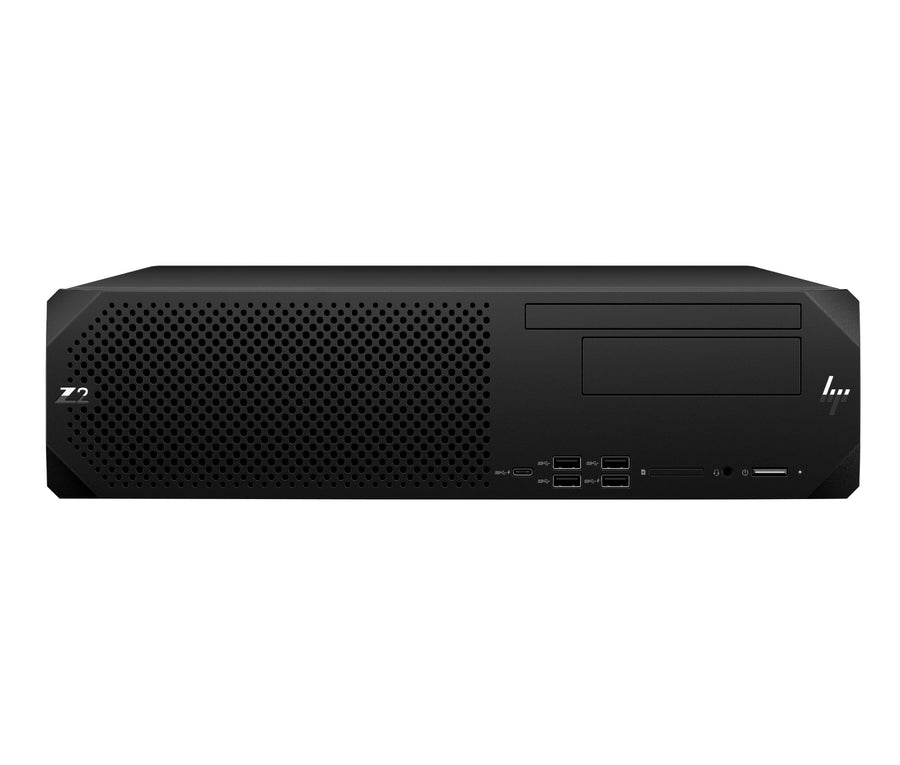

HP Z2 G9 Intel® Core™ i7 i7-14700 16 GB DDR5-SDRAM 512 GB SSD NVIDIA T400 Windows 11 Pro SFF Workstation AI Workstation Black
Product overview & specifications
Z2 Small Form Factor G9 Workstation, Windows 11 Pro, Intel CoreT i7, 16GB RAM, 512GB SSD, T400, AI Workstation
Full size Z tower power at half the size
Get all the power of a full size tower at a fraction of the size. Re-engineered to fit full-height, full-length graphics while leaving room for upgrades and expansion, the Z2 SFF delivers high performance for your intensive workflow-from 3D design to real time ray tracing-now and in the future.
Specifications
| Processor | |
|---|---|
| Processor generation | Intel� CoreT i7 (14th gen) |
| Processor cache type | L3 |
| Processor cache | 33 MB |
| Processor model | i7-14700 |
| Processor manufacturer | Intel |
| Processor boost frequency | 5.4 GHz |
| Processor threads | 28 |
| Processor cores | 16 |
| Processor family | Intel� CoreT i7 |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Processor base power | 65 W |
| Maximum turbo power | 219 W |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Memory | |
| Non-ECC | Yes |
| ECC | No |
| Memory layout (slots x size) | 2 x 8 GB |
| Internal memory | 16 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 4800 MHz |
| Storage | |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Optical drive type | No |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total storage capacity | 512 GB |
| SSD form factor | M.2 |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete graphics card memory | 4 GB |
| On-board graphics card family | Intel� UHD Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA T400 |
| Discrete graphics memory type | GDDR6 |
| On-board graphics card model | Intel UHD Graphics 770 |
| Number of discrete graphics cards | 1 |
| Discrete GPU manufacturer | NVIDIA |
| On-board GPU manufacturer | Intel |
| Performance | |
| Market positioning | Performance |
| Password protection | Yes |
| Password protection type | BIOS, Power on |
| Product type | Workstation |
| Motherboard chipset | Intel W680 |
| Audio chip | Realtek ALC3252 |
| Harmonized System (HS) code | 8471500000 |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 3 |
| Line-out | Yes |
| Line-in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery (USB PD) | Yes |
| Expansion slots | |
| PCI Express x4 (Gen 3.x) slots | 2 |
| Number of 3.5" bays | 1 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| Power | |
| Power supply input frequency | 50/60 Hz |
| Power supply input voltage | 100 - 240 V |
| Power supply | 450 W |
| Technical details | |
| Number of 2.5" bays | 1 |
| Product type | Workstation |
| Intel� Turbo Boost Technology | Yes |
| Product colour | Black |
| Chassis type | SFF |
| Number of 3.5" bays | 1 |
| Motherboard chipset | Intel W680 |
| Sustainable technologies and materials | 80 Plus Gold power supplies available; 25% ITE-derived closed loop plastic; Bulk packaging available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; 45% post-consumer recycled plastic; 10% ITE-derived closed loop plastic; Ocean-bound plastic in speaker enclosure and system fan; Low halogen PCAs; Product Carbon Footprint; Ocean-bound plastic in system fan, processor fan and speaker |
| Sustainability certificates | ENERGY STAR, EPEAT, TCO |
| General Product Safety Regulation (GPSR) URL | https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true https://h10032.www1.hp.com/ctg/Manual/c08154349.pdf |
| Design | |
| Number of 2.5" bays | 1 |
| Product colour | Black |
| Chassis type | SFF |
| Number of 3.5" bays | 1 |
| Country of origin | Czech Republic |
| Introduction year | 2024 |
| Software | |
| Bundled software | HP Wolf Pro Security Edition (1 year) |
| Pre-installed software | HP PC Hardware Diagnostics UEFI; HP Support Assistant; HP PC Hardware Diagnostics Windows; HP Privacy Settings; HP Desktop Support Utilities; HP Image Assistant; HP Manageability Integration Kit; HP Notifications; Performance Advisor 3.0; HP Data Science Stack Manager; myHP |
| Operating system installed | Windows 11 Pro |
| Display | |
| Display included | No |
| Processor special features | |
| Intel� Turbo Boost Technology | Yes |
| Brand-specific features | |
| HP Support Assistant | Yes |
| HP Security tools | HP Secure Erase; HP Sure Click; HP BIOSphere Gen6; HP Sure Admin; Hood Sensor Optional Kit; HP Client Security Manager Gen6; HP Sure Start Gen7; HP Sure Recover Gen4; HP Tamper Lock; HP Sure Sense Gen2; HP Sure Run Gen5 |
| HP Management tools | HP Client Catalog (download); HP Cloud Recovery; HP Driver Packs; HP Management Integration Kit for Microsoft System Center Configuration Management Gen4; HP System Software Manager (download); HP BIOS Configuration Utility (download); HP Image Assistant (download); HP Client Management Script Library (download) |
| HP Software provided | HP PC Hardware Diagnostics UEFI; HP PC Hardware Diagnostics Windows; ZCentral Remote Boost; HP Image Assistant; HP Manageability Integration Kit; Performance Advisor 3.0 |
| HP segment | Business |
| HP Artificial Intelligence | AI Workstation |
| Audio | |
| Audio chip | Realtek ALC3252 |
| Sustainability | |
| Total carbon footprint (kg of CO2e) | 390 |
| Sustainable technologies and materials | 80 Plus Gold power supplies available; 25% ITE-derived closed loop plastic; Bulk packaging available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; 45% post-consumer recycled plastic; 10% ITE-derived closed loop plastic; Ocean-bound plastic in speaker enclosure and system fan; Low halogen PCAs; Product Carbon Footprint; Ocean-bound plastic in system fan, processor fan and speaker |
| Sustainability certificates | ENERGY STAR, EPEAT, TCO |
| Weight & dimensions | |
| Package width | 100 mm |
| Package depth | 384 mm |
| Package height | 308 mm |
| Width | 384 mm |
| Depth | 308 mm |
| Height | 384 mm |
| Package weight | 5.9 kg |
| Weight | 5 kg |
| Packaging data | |
| Package width | 100 mm |
| Package depth | 384 mm |
| Package height | 308 mm |
| Package weight | 5.9 kg |
| Packaging content | |
| Numeric keypad | No |
| Mouse included | Yes |
| Keyboard included | Yes |
| Input device model | HP Wired 320M Mouse |
| Mouse connectivity | Wired |
| Bundled software | HP Wolf Pro Security Edition (1 year) |
| Display included | No |
| Keyboard connectivity | Wired |
| Certificates | |
| Low halogen | Yes |
| Keyboard | |
| Keyboard connectivity | Wired |
| Logistics data | |
| Harmonized System (HS) code | 8471500000 |
| Carbon footprint | |
| Total carbon footprint (kg of CO2e) | 390 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 175 |
| Carbon emissions, manufacturing (kg of CO2e) | 209 |
| Carbon emissions, logistics (kg of CO2e) | 2 |
| Carbon emissions, end-of-life (kg of CO2e) | 2 |
| Features | |
| Country of origin | Czech Republic |
| Other features | |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
| Country of origin | Czech Republic |
| Harmonized System (HS) code | 8471500000 |
