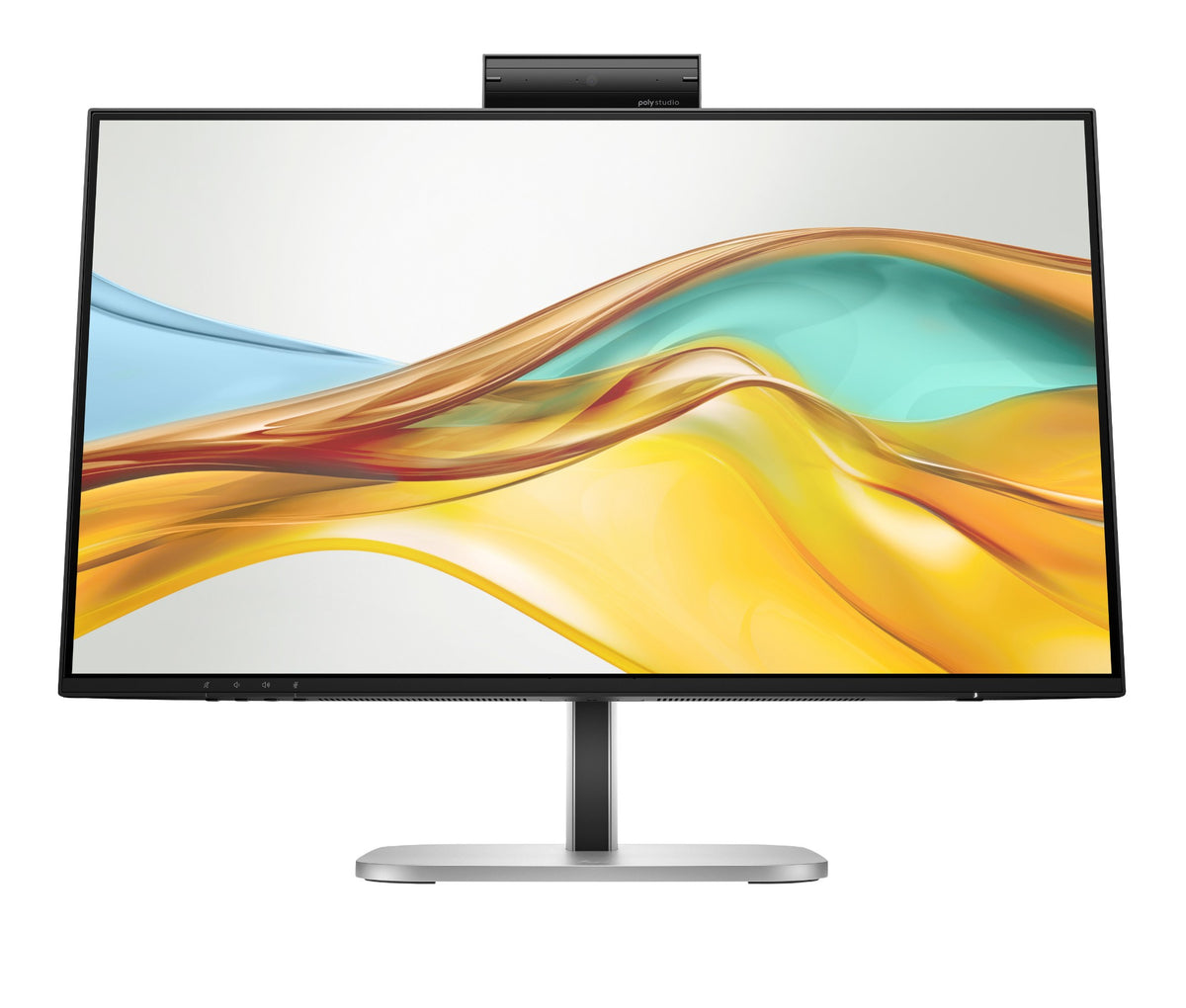

HP Series 5 Pro 23.8 inch FHD USB-C Conferencing Monitor - 524pm
Product overview & specifications
Series 5 Pro 23.8 inch FHD USB-C Conferencing Monitor - 524pm
Conferencing made remarkable with AI
Feel confident collaborating effortlessly with the HP Series 5 Pro 23.8" FHD USB-C Conferencing Monitor. Achieve distraction-free meetings, wherever you work, with advanced AI. Settle into total comfort thanks to a customizable setup.
Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 350 cd/m� |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| Pixel density | 93 ppi |
| Colour gamut | 100% |
| Maximum refresh rate | 100 Hz |
| sRGB coverage (typical) | 100% |
| Display surface | Matt |
| HD type | Full HD |
| Display technology | LCD |
| Contrast ratio (dynamic) | 10000000:1 |
| Viewing angle, horizontal | 178� |
| Viewing angle, vertical | 178� |
| Pixel pitch | 0.27 x 0.27 mm |
| Horizontal scan range | 30 - 115 kHz |
| Vertical scan range | 50 - 100 Hz |
| Aspect ratio | 16:9 |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Viewable size diagonal | 6.05 cm |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA) |
| Backlight type | Edge LED |
| Display resolution | 1920 x 1080 pixels |
| Response time | 5 ms |
| Display diagonal | 60.5 cm (23.8") |
| Contrast ratio (typical) | 1500:1 |
| Surface hardness | 3H |
| Response time (fast) | 5 ms |
| Touchscreen | No |
| Display bezel technology | Micro-Edge |
| Panel type | IPS |
| Colour depth | 8 bit |
| Display diagonal (metric) | 60.5 cm |
| Haze rate | 25% |
| LED backlight | Yes |
| Display brightness | 350 cd/m� |
| Colour gamut standard | sRGB |
| Response time measurement type | GTG (Gray to Gray) |
| Anti-glare screen | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 12 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 12 W |
| Megapixel (approx.) | 5 MP |
| Built-in microphone | Yes |
| Built-in camera | Yes |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| HP segment | Business |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Infrared (IR) sensor | Yes |
| Fast charging | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Remotely operated | Yes |
| Multimedia | |
| Number of speakers | 4 |
| Built-in speaker(s) | Yes |
| RMS rated power | 12 W |
| Megapixel (approx.) | 5 MP |
| Built-in microphone | Yes |
| Built-in camera | Yes |
| Design | |
| Market positioning | Business |
| Country of origin | China, Thailand |
| Feet colour | Silver, Black |
| Product colour | Black |
| Detachable stand | Yes |
| Colour name | Jet black |
| Camera | |
| Megapixel (approx.) | 5 MP |
| Built-in camera | Yes |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB Type-A downstream ports quantity | 3 |
| USB Type-C downstream ports quantity | 1 |
| Headphone out | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| Audio input | Yes |
| Audio output | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| HDMI | Yes |
| HDMI version | 2.0 |
| DisplayPort version | 1.4 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Number of USB Type-B upstream ports quantity | 1 |
| Built-in KVM switch | Yes |
| DisplayPort out quantity | 1 |
| DisplayPort out version | 1.4 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Technical details | |
| Height (without stand) | 123.7 mm |
| Depth (without stand) | 18.6 mm |
| Width (without stand) | 212.4 mm |
| Feet colour | Silver, Black |
| Cable lock slot | Yes |
| HDMI | Yes |
| Built-in microphone | Yes |
| Product colour | Black |
| UNSPSC-code | 43211902 |
| Sustainable technologies and materials | At least 85% ITE-derived closed loop plastic in bezel; Contains ocean-bound plastic; At least 35% recycled metal including 90% recycled aluminum in the stand; Contains 20% recycled glass in the monitor panel; Low halogen; Outside box and corrugated cushions are made of 100% recycled or certified sources |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, EPEAT, TCO, EPEAT Climate +, TCO10 |
| Compliance certificates | CECP, CCC, CB, EAC, BIS, Federal Communications Commission (FCC), CE, BSMI |
| General Product Safety Regulation (GPSR) URL | https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true |
| Country of origin | China, Thailand |
| Power supply type | Internal |
| Weight (with stand) | 9.5 kg |
| Surface hardness | 3H |
| Touchscreen | No |
| Software | |
| Bundled software | HP Display Center; HP Client Management Script Library |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Swivelling | Yes |
| Swivel angle range | -45 - 45� |
| Tilt angle range | -5 - 23� |
| Pivot | Yes |
| On Screen Display (OSD) | Yes |
| Pivot angle | -90 - 90� |
| Height adjustment | Yes |
| Tilt adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Power | |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 223 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 33 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | D |
| Energy efficiency class (HDR) | D |
| Energy consumption (SDR) per 1000 hours | 14 kWh |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 �C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 20 - 80% |
| Non-operating relative humidity (non-condensing) | 20 - 80% |
| Weight & dimensions | |
| Height (without stand) | 123.7 mm |
| Depth (without stand) | 18.6 mm |
| Width (without stand) | 212.4 mm |
| Width (with stand) | 539.4 mm |
| Depth (with stand) | 189.5 mm |
| Height (with stand) | 503.2 mm |
| Weight (with stand) | 9.5 kg |
| Weight (without stand) | 4.99 kg |
| Package width | 621 mm |
| Package depth | 140 mm |
| Package height | 393 mm |
| Package weight | 9.5 kg |
| Weight | 9.5 kg |
| Packaging data | |
| Package width | 621 mm |
| Package depth | 140 mm |
| Package height | 393 mm |
| Package weight | 9.5 kg |
| Package type | Box |
| Warranty card | Yes |
| Quick start guide | Yes |
| Cables included | DisplayPort, USB Type-A to USB Type-B, USB Type-C to USB Type-C, AC |
| Bundled software | HP Display Center; HP Client Management Script Library |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | DisplayPort, USB Type-A to USB Type-B, USB Type-C to USB Type-C, AC |
| Bundled software | HP Display Center; HP Client Management Script Library |
| Sustainability | |
| Total carbon footprint (kg of CO2e) | 201.931 |
| Sustainable technologies and materials | At least 85% ITE-derived closed loop plastic in bezel; Contains ocean-bound plastic; At least 35% recycled metal including 90% recycled aluminum in the stand; Contains 20% recycled glass in the monitor panel; Low halogen; Outside box and corrugated cushions are made of 100% recycled or certified sources |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, EPEAT, TCO, EPEAT Climate +, TCO10 |
| Carbon footprint | |
| Total carbon footprint (kg of CO2e) | 201.931 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 41.45 |
| Carbon emissions, manufacturing (kg of CO2e) | 155.629 |
| Carbon emissions, logistics (kg of CO2e) | 2.831 |
| Carbon emissions, end-of-life (kg of CO2e) | 2.021 |
| Features | |
| Country of origin | China, Thailand |
| Other features | |
| Country of origin | China, Thailand |
| Ethernet LAN (RJ-45) ports | 1 |
| UNSPSC-code | 43211902 |
| Weight | 9.5 kg |
| Compliance certificates | CECP, CCC, CB, EAC, BIS, Federal Communications Commission (FCC), CE, BSMI |
| Manufacturer warranty | HP three-year limited warranty |
| Height (without stand) | 123.7 mm |
| Depth (without stand) | 18.6 mm |
| Width (without stand) | 212.4 mm |
| Power consumption (max) | 223 W |
| Quick start guide | Yes |
| HDMI | Yes |
| Surface hardness | 3H |
| USB Power Delivery up to | 100 W |
| Energy efficiency scale | A to G |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Power supply type | Internal |
| Ethernet LAN | Yes |
| Touchscreen | No |
| USB Power Delivery (USB PD) | Yes |
| Package type | Box |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 201.931 |
