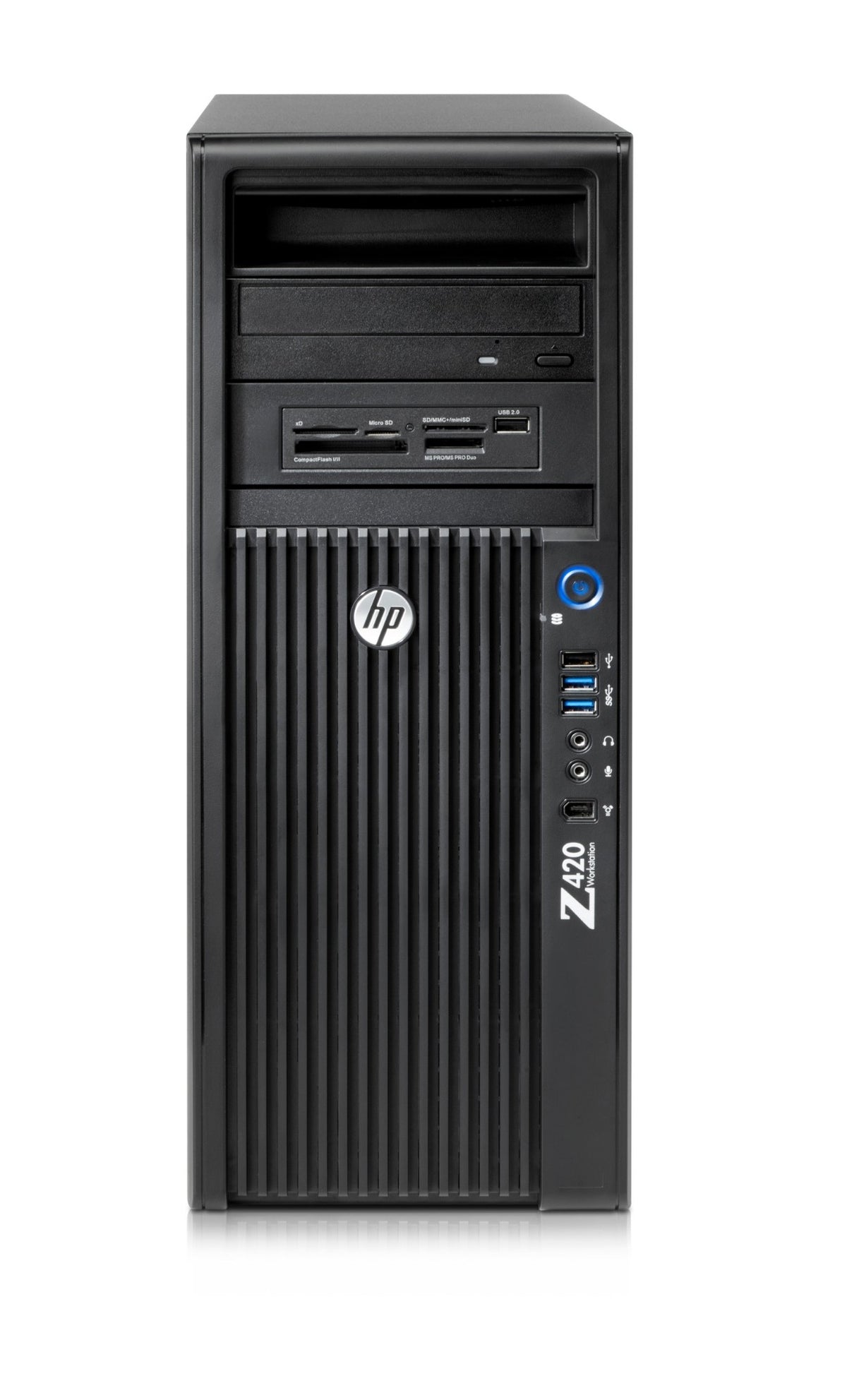

HP 420 Intel® Xeon® E5 Family E5-1650 8 GB DDR3-SDRAM Windows 7 Professional Minitower Workstation
Product overview & specifications
Z420 Workstation - Intel� Xeon� E5-1650 3.20GHz, 8GB 1600MHz DDR3 ECC Unbuffered RAM, 1TB 7200rpm SATA NCQ, SATA SuperMulti DVD+/-RW, Windows� 7 Professional 64
Performance you want. Value you need. The HP Z420 gives you professional expandability in an accessible tool-free mini-tower form factor - all at a great price. With up to 8 discrete processing cores, the latest processing and I/O power from Intel�, and the latest graphics technology from leading graphics providers, the HP Z420 has the power you need to get the job done.
Featuring Genuine Windows 7 Professional and/or other operating systems
Designed With Ease.
- Enjoy the control that comes with being able to swap out parts or make upgrades on your own. The HP Z420 Workstation features a smart chassis that offers tool-less access to the inside, easy configurability and optional optical bay handles for seamless deployment.
- And with optional liquid cooling designed to deliver whisper-quiet performance, the HP Z420 is built to make your work flow smoother.
Enjoy Superb Performance.
- Achieve the highest performance available in a single-processer personal workstation. The HP Z420 Workstations offers your choice of Intel� Xeon� E5-1600 and E5-2600 series processors - with base clock frequencies of up to 3.6GHz and the new Intel� C602 chipset.
- Delivering support for up to 8 cores of processing power, the HP Z420 never slows you down.
Never Compromise On Graphics.
- Built to support next generation PCIe Gen3 graphics, the HP Z420 currently offers a breadth of AMD and NVIDIA professional graphics cards from Pro 2D to high-end 3D, up to the NVIDIA Quadro 5000.
- With 600W 90% efficient power supply and support for up to 8 HP Performance Displays, the HP Z420 can maximize your productivity with the freedom of seeing and doing more all at once.
Build It Your Way.
- Build the HP Z420 Workstation the way you want with multiple SATA and SAS RAID configuration options that support a wide range of high-performance, high capacity storage solutions.
- Always know you're a step ahead with 8 DIMM slots in 4-channel memory architecture, delivering up to 64GB and integrated 1600MHz memory.
Complete Peace of Mind.
- HP workstations offer BFR/PVC-free and ENERGY STAR� qualified configurations featuring 90% efficient power supplies.
Specifications
| Processor | |
|---|---|
| Processor operating modes | 64-bit |
| Processor lithography | 32 nm |
| Processor codename | Sandy Bridge EP |
| Bus type | QPI |
| Maximum internal memory supported by processor | 375 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333,1600 MHz |
| Thermal Design Power (TDP) | 130 W |
| Tcase | 64 �C |
| Processor series | Intel Xeon E5-1600 |
| PCI Express configurations | x4, x8, x16 |
| Maximum number of PCI Express lanes | 40 |
| FSB Parity | No |
| Memory bandwidth supported by processor (max) | 51.2 GB/s |
| ECC supported by processor | Yes |
| Processor cache type | Smart Cache |
| CPU multiplier (bus/core ratio) | 38 |
| Conflict-Free processor | No |
| Processor cache | 12 MB |
| Processor frequency | 3.2 GHz |
| Processor model | E5-1650 |
| Number of processors installed | 1 |
| Processor manufacturer | Intel |
| Processor boost frequency | 3.8 GHz |
| System bus rate | 0 GT/s |
| Processor socket | LGA 2011 (Socket R) |
| Processor threads | 12 |
| Processor cores | 6 |
| PCI Express slots version | 3.0 |
| Processor family | Intel� Xeon� E5 Family |
| Memory | |
| ECC | Yes |
| Internal memory | 8 GB |
| Memory slots | 8x DIMM |
| Internal memory type | DDR3-SDRAM |
| Memory clock speed | 1600 MHz |
| Memory channels | Quad-channel |
| Storage | |
| Number of HDDs installed | 1 |
| Optical drive type | DVD Super Multi |
| HDD capacity | 1 TB |
| HDD speed | 7200 RPM |
| HDD interface | SATA |
| Card reader integrated | Yes |
| Total HDDs capacity | 1 TB |
| Graphics | |
| Graphics card | No |
| Performance | |
| Product type | Workstation |
| Motherboard chipset | Intel� C602 |
| Embedded options available | No |
| Audio system | HD |
| Optical drive | |
| Optical drive type | DVD Super Multi |
| Network | |
| Networking features | Gigabit Ethernet (10/100/1000) |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 0 |
| USB 2.0 ports quantity | 5 |
| Serial ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Parallel ports quantity | 0 |
| Microphone in | Yes |
| Line-in | Yes |
| Firewire (IEEE 1394) ports | 2 |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Expansion slots | |
| PCI slots | 1 |
| PCI Express x8 slots | 1 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI Express x1 slots | 1 |
| PCI Express slots version | 3.0 |
| Number of 3.5" bays | 3 |
| Power | |
| Power supply | 600 W |
| Technical details | |
| Intel 64 | Yes |
| Intel� Wireless Display (Intel� WiDi) | No |
| Product type | Workstation |
| Intel� Turbo Boost Technology | 2.0 |
| Intel� Quick Sync Video Technology | No |
| Intel� My WiFi Technology (Intel� MWT) | No |
| Intel� Identity Protection Technology (Intel� IPT) | No |
| Intel� Hyper Threading Technology (Intel� HT Technology) | Yes |
| Intel� Anti-Theft Technology (Intel� AT) | No |
| Chassis type | Minitower |
| Audio system | HD |
| Number of 5.25" bays | 3 |
| Number of 3.5" bays | 3 |
| Cable lock slot | No |
| Motherboard chipset | Intel� C602 |
| Design | |
| Chassis type | Minitower |
| Number of 5.25" bays | 3 |
| Number of 3.5" bays | 3 |
| Cable lock slot | No |
| Country of origin | China |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 7 Professional |
| Display | |
| Display included | No |
| Processor special features | |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel� InTruT 3D Technology | No |
| Intel� InsiderT | No |
| Intel Clear Video Technology | No |
| Intel� Clear Video HD Technology (Intel� CVT HD) | No |
| Intel� AES New Instructions (Intel� AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Intel Flex Memory Access | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel� Smart Cache | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Intel� Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Supported instruction sets | AVX |
| Scalability | 1S |
| Processor package size | 52.5 x 45.0 mm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Dual Display Capable Technology | No |
| Conflict-Free processor | No |
| Processor ARK ID | 64601 |
| Intel 64 | Yes |
| Intel� Wireless Display (Intel� WiDi) | No |
| Intel� Turbo Boost Technology | 2.0 |
| Intel� Quick Sync Video Technology | No |
| Intel� My WiFi Technology (Intel� MWT) | No |
| Intel� Identity Protection Technology (Intel� IPT) | No |
| Intel� Hyper Threading Technology (Intel� HT Technology) | Yes |
| Intel� Anti-Theft Technology (Intel� AT) | No |
| Audio | |
| Audio system | HD |
| Weight & dimensions | |
| Width | 177.8 mm |
| Depth | 445.2 mm |
| Height | 447.6 mm |
| Weight | 12.5 kg |
| Packaging content | |
| Display included | No |
| Features | |
| Country of origin | China |
| Other features | |
| Processor manufacturer | Intel |
| Networking features | Gigabit Ethernet (10/100/1000) |
| Graphics card | No |
| Country of origin | China |
