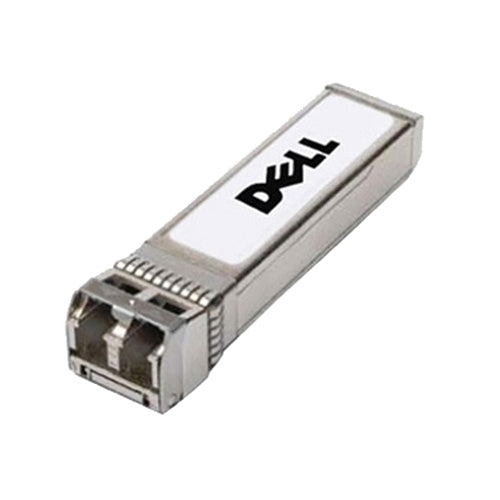

DELL SFP+ 10GBASE-LR network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm
Product overview & specifications
Networking Transceiver, SFP+, 10GbE, LR, 1310nm Wavelength, 10km Reach
The DellT SFP+ transceiver delivers fiber connectivity to extend the range of your network. This hot-pluggable transceiver with SFP (Small Form Factor Pluggable) footprint features a duplex LC connector. The Dell networking 10GBase-LRM SFP+ transceiver provides 10GbE connectivity up to 10 km.
Additionally, it provides a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power, and transceiver supply voltage.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Fiber cable diameters supported (core/cladding) | 9/125 �m |
| Cabling technology | 10GBASE-LR |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| SFP transceiver standard | LR |
| Hot-Plug support | Yes |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Hot-Plug support | Yes |
| Certification | MSA |
| Certificates | |
| Certification | MSA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 �C |
| Storage temperature (T-T) | -40 - 85 �C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u |
| Cabling technology | 10GBASE-LR |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Weight & dimensions | |
| Width | 13.4 mm |
| Depth | 56.5 mm |
| Height | 8.5 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Hot-Plug support | Yes |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Fiber cable diameters supported (core/cladding) | 9/125 �m |
| Cabling technology | 10GBASE-LR |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85369010 |
