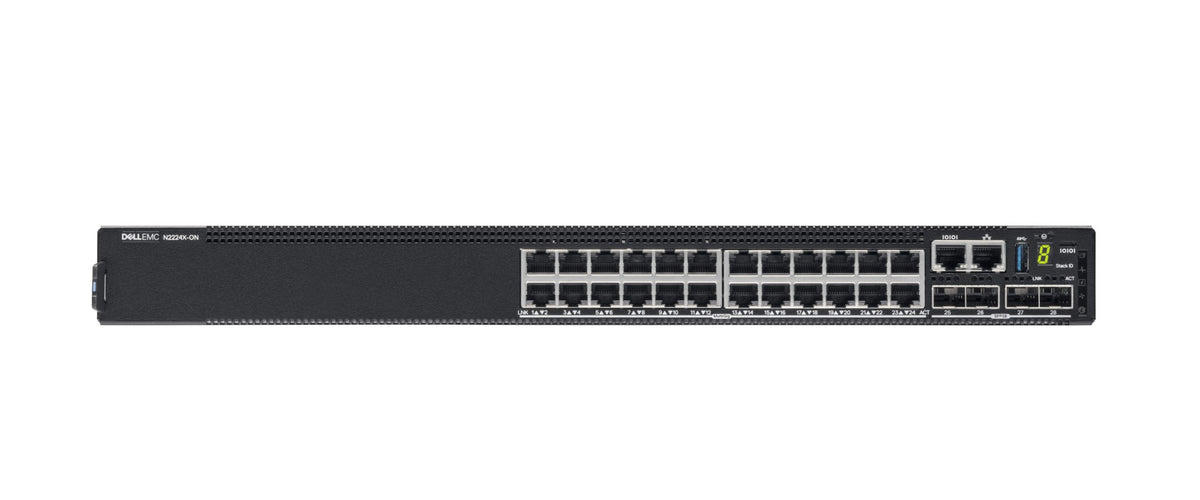

DELL N2224X-ON Managed L3 2.5G Ethernet (100/1000/2500) 1U Black
Product overview & specifications
L3, 24x1/2.5GbE RJ-45, 160 Gbit/s, 550W, 1U
Modernize your campus access network
Purpose-built industry's first 24 and 48 port Multi-Gig and Multi-Gig 60W PoE switches for modern workloads and greater employee productivity.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Multicast support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| QSFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| USB 2.0 ports quantity | 1 |
| SFP28 ports quantity | 4 |
| Network | |
| Active link detection | Yes |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4096 |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Packet buffer memory | 4 MB |
| MAC address table | 32000 entries |
| Switching capacity | 160 Gbit/s |
| Forwarding rate | 667 Mpps |
| Number of VLANs | 4096 |
| Security | |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Power | |
| Power supply included | Yes |
| Power consumption (typical) | 550 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 65 �C |
| Storage relative humidity (H-H) | 0 - 85% |
| Operating temperature (T-T) | 0 - 45 �C |
| Operating relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 812 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4096 |
| Weight & dimensions | |
| Width | 434.1 mm |
| Depth | 400.1 mm |
| Height | 43.4 mm |
| Weight | 6.49 kg |
| Performance | |
| Packet buffer memory | 4 MB |
| Stackable | Yes |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 4 MB |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
DELL N2224X-ON Managed L3 2.5G Ethernet (100/1000/2500) 1U Black
£3,315.44
