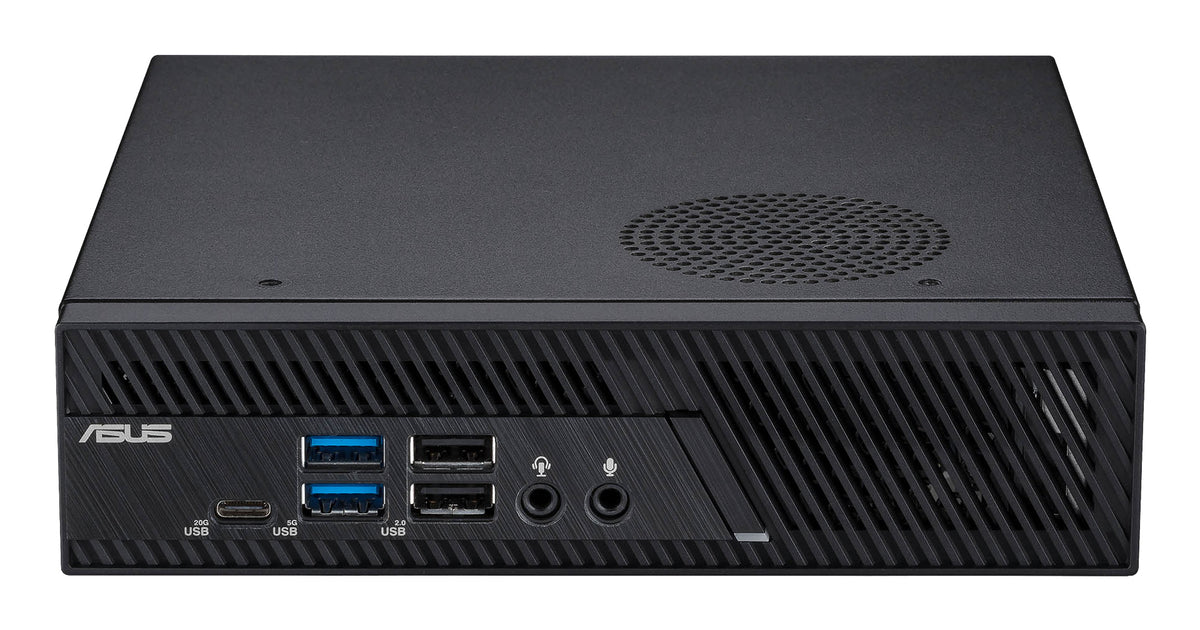

ASUS PB63-B3200MH Intel® Core™ i3 i3-14100 8 GB DDR5-SDRAM 256 GB SSD Mini PC Black
Product overview & specifications
Intel Core i3-14100 (12MB Cache), 8GB DDR5-SDRAM, 256GB SSD, Intel UHD Graphics 730, LAN, WLAN, Bluetooth, No OS
Solid reliability for your business
ASUS ExpertCenter PB63 is a durable, versatile and powerful PC suited to a range of business applications, including signage, point-of-sales (POS) systems, kiosks and intelligent vending machines. Powered by the latest Intel� 13th Generation CoreT with Intel� UHD Graphics processors, PB63 delivers desktop-grade performance in a compact size, with supports the next gen memory - DDR5. To cater to diverse demands, PB63 supports a 46 to 65 watt CPU - so it's easy to spec for supreme efficiency or maximum performance. Comprehensive connectivity with eight USB ports and support for up to three 4K UHD displays means PB63 is perfect for almost any business scenario. It's also tested to the latest MIL-STD-810H military standard to ensure it's ready for harsh environments.
Specifications
| Processor | |
|---|---|
| Processor generation | Intel� CoreT i3 (14th gen) |
| Processor cache type | Smart Cache |
| Processor cache | 12 MB |
| Processor model | i3-14100 |
| Processor manufacturer | Intel |
| Processor boost frequency | 4.7 GHz |
| Processor threads | 8 |
| Processor cores | 4 |
| Processor family | Intel� CoreT i3 |
| Performance cores | 4 |
| Efficient cores | 0 |
| Performance-core base frequency | 3.5 GHz |
| Processor base power | 60 W |
| Maximum turbo power | 110 W |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | DDR5-SDRAM |
| Storage | |
| Storage media | SSD |
| Optical drive type | No |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 256 GB |
| Number of SSDs installed | 1 |
| Total storage capacity | 256 GB |
| SSD form factor | M.2 |
| Total SSDs capacity | 256 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel� UHD Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel UHD Graphics 730 |
| On-board GPU manufacturer | Intel |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| USB 2.0 ports quantity | 3 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 2 |
| DC-in jack | Yes |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Technical details | |
| Cable lock slot type | Kensington |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Product colour | Black |
| Chassis type | Mini PC |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Design | |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Chassis type | Mini PC |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Colour name | Black |
| Performance | |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Software | |
| Operating system installed | No |
| Power | |
| Power supply | 150 W |
| Certificates | |
| Certification | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
| Weight & dimensions | |
| Package width | 360 mm |
| Package depth | 240 mm |
| Package height | 68 mm |
| Width | 175 mm |
| Depth | 175 mm |
| Height | 44.2 mm |
| Weight | 1.18 kg |
| Packaging data | |
| Package width | 360 mm |
| Package depth | 240 mm |
| Package height | 68 mm |
| Packaging content | |
| Display included | No |
| Display | |
| Display included | No |
| Other features | |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
