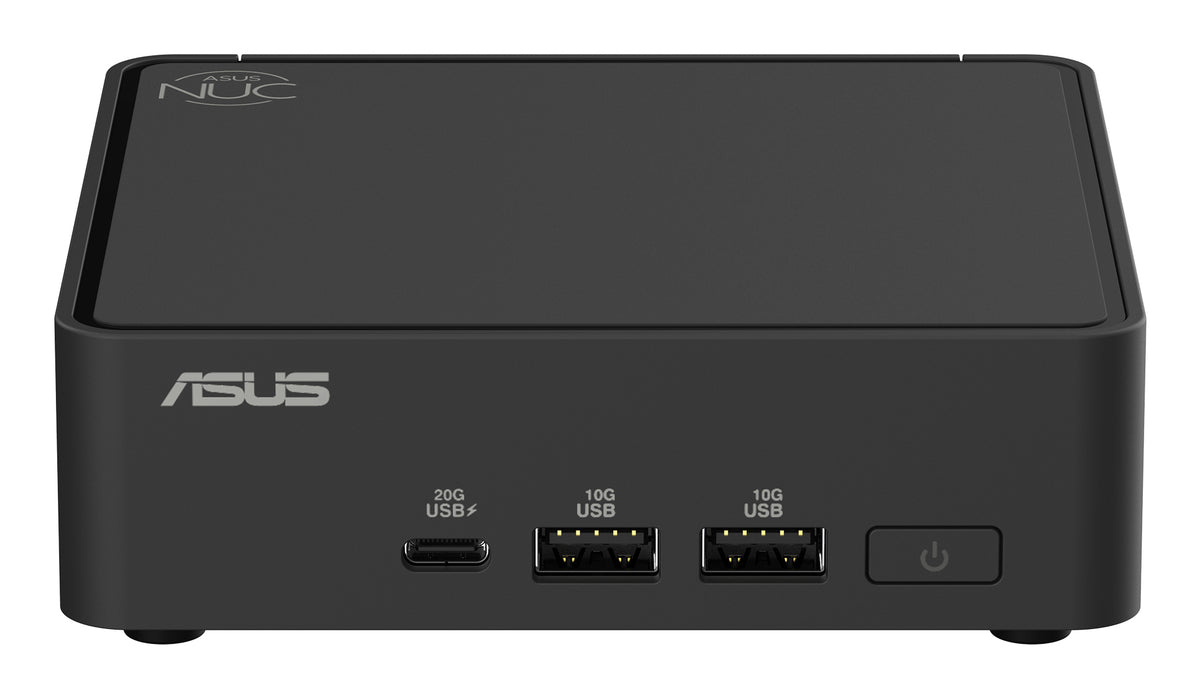

ASUS NUC RNUC15CRKU506302 Intel Core Ultra 5 225H 16 GB DDR5-SDRAM 512 GB SSD Mini PC Black
Product overview & specifications
Intel Core Ultra 5 225H (18MB Cache), 16GB DDR5-SDRAM, 512GB SSD, Intel Arc 130T, LAN, No OS
ASUS NUC 15 Pro
Best Compact Choice for the AI-Driven Future.
Experience the future of computing with ASUS NUC 15 Pro - a sleek mini PC that's perfect for office and edge computing. Powered by the latest Intel� CoreT Ultra processor with DDR5 6400MHz memory and Intel ArcT graphics, ASUS NUC 15 Pro delivers unmatched speed and efficiency in a scratch-resistance matte texture chassis
Specifications
| Processor | |
|---|---|
| Processor generation | Intel Core (Series 2) |
| Processor cache type | Smart Cache |
| Processor cache | 18 MB |
| Processor model | 225H |
| Processor manufacturer | Intel |
| Processor boost frequency | 4.9 GHz |
| Processor threads | 14 |
| Processor cores | 14 |
| Processor family | Intel Core Ultra 5 |
| Performance cores | 4 |
| Efficient cores | 8 |
| Performance-core base frequency | 1.7 GHz |
| Efficient-core base frequency | 1.3 GHz |
| Processor base power | 28 W |
| Maximum turbo power | 115 W |
| Efficient-core Max Turbo Frequency | 4.3 GHz |
| Performance-core Max Turbo Frequency | 4.9 GHz |
| Low Power Efficient-cores | 2 |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI datatype support on NPU | Int8 |
| AI software frameworks supported by NPU | DirectML, OpenVINO, ONNX RT, WebNN, Windows ML |
| Total processor performance up to | 83 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 63 TOPs |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 96 GB |
| Internal memory type | DDR5-SDRAM |
| Storage | |
| Storage media | SSD |
| Optical drive type | No |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total storage capacity | 512 GB |
| SSD form factor | M.2 |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Arc 130T |
| On-board GPU manufacturer | Intel |
| Performance | |
| Product type | Mini PC |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet LAN data rates | 2500 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI version | 2.1 |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Intel� Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Power | |
| Power supply | 120 W |
| Technical details | |
| Cable lock slot type | Kensington |
| Product type | Mini PC |
| Product colour | Black |
| Chassis type | Mini PC |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Design | |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Chassis type | Mini PC |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Colour name | Black |
| Software | |
| Operating system installed | No |
| Display | |
| Display included | No |
| Processor special features | |
| Low Power Efficient-cores | 2 |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Weight & dimensions | |
| Width | 117 mm |
| Depth | 112 mm |
| Height | 37 mm |
| Weight | 500 g |
| Packaging content | |
| Display included | No |
| Other features | |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
