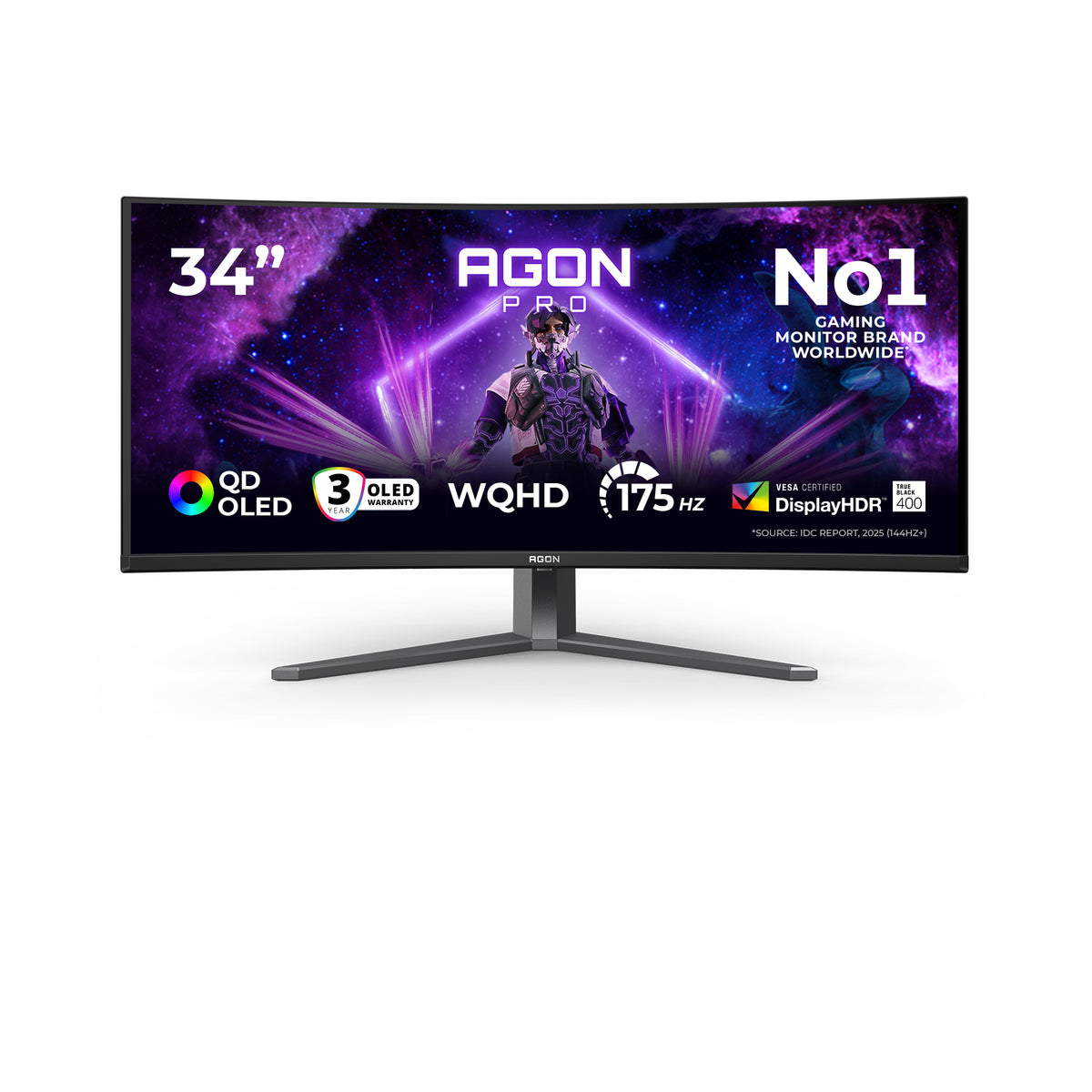

AOC AGON PRO AG346UCD computer monitor 86.4 cm (34") 3440 x 1440 pixels Wide Quad HD QD-OLED Black, Grey
Product overview & specifications
Screen size (inch) 34, Panel resolution 3440x1440, Max Refresh rate 175 Hz, Panel type QD - OLED, HDMI HDMI 2.0 x 2, DisplayPort DisplayPort 1.4 x 1, Sync technology (VRR) Adaptive Sync
Become a legend with the AGON AG346UCD, a 34-inch WQHD curved monitor featuring QD-OLED technology and a 175Hz refresh rate.
The AG346UCD is a 34-inch WQHD (21:9) curved monitor featuring QD-OLED technology for vivid color accuracy and deep contrasts. Its 175Hz refresh rate ensures ultra-smooth, lag-free visuals crucial for eSports. The HDR TB400 VESA certification enhances gaming with breathtaking brightness, while AdaptiveSync eliminates screen tearing. Creative professionals benefit from precise color reproduction and wide color gamut for graphic design. With an ergonomic design, a versatile USB hub, customizable RGB Light FX, and Gmenu, the AG346UCD is the definitive choice for achieving legendary status in gaming and creative endeavors alike.
Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 1000 cd/m� |
| Screen shape | Curved |
| Display number of colours | 1.073 billion colours |
| Native aspect ratio | 21:9 |
| Pixel density | 109.68 ppi |
| Maximum refresh rate | 175 Hz |
| sRGB coverage (typical) | 139.1% |
| Adobe RGB coverage | 97.8% |
| HD type | Wide Quad HD |
| Display technology | QD-OLED |
| Viewing angle, horizontal | 178� |
| Viewing angle, vertical | 178� |
| Pixel pitch | 0.2315 x 0.2315 mm |
| Viewable size, horizontal | 80.1 cm |
| Viewable size, vertical | 33.7 cm |
| Digital horizontal frequency | 30 - 385 kHz |
| Digital vertical frequency | 48 - 240 Hz |
| Backlight type | W-LED |
| Display resolution | 3440 x 1440 pixels |
| Response time | 0.03 ms |
| Display diagonal | 86.4 cm (34") |
| Contrast ratio (typical) | 150000:1 |
| Surface hardness | 3H |
| Touchscreen | No |
| High Dynamic Range (HDR) supported | Yes |
| Panel type | OLED |
| DCI-P3 coverage | 99.3% |
| High Dynamic Range (HDR) technology | DisplayHDR 400 True Black |
| Screen curvature rating | 1800R |
| Display diagonal (metric) | 86.36 cm |
| Haze rate | 35% |
| LED backlight | Yes |
| Colour gamut standard | Adobe RGB, DCI-P3, sRGB |
| Response time measurement type | GTG (Gray to Gray) |
| Anti-glare screen | Yes |
| AMD FreeSync refresh rate range | 48 - 175 Hz |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 16 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 16 W |
| Built-in camera | No |
| AMD FreeSync type | FreeSync Premium |
| AMD FreeSync | Yes |
| Game mode | Yes |
| NVIDIA G-SYNC | Yes |
| VESA Adaptive Sync support | Yes |
| AMD FreeSync refresh rate range | 48 - 175 Hz |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Brand specific technologies | Crosshair |
| Low input lag | Yes |
| FPS counter | Yes |
| Dial point | Yes |
| Shadow control | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Croatian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Ukrainian |
| Picture-in-Picture | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 16 W |
| Built-in camera | No |
| Design | |
| Market positioning | Gaming |
| Certification | WEEE,REACH compliant,RoHs compliant |
| Product colour | Black, Grey |
| Front bezel colour | Black |
| Frameless design | Yes |
| Detachable stand | Yes |
| Bezel thickness type | Frameless |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 3 |
| Headphone out | Yes |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| HDMI | Yes |
| HDMI version | 2.0 |
| DisplayPort version | 1.4 |
| HDCP version | 2.2 |
| Technical details | |
| Height (without stand) | 361.2 mm |
| Depth (without stand) | 130.2 mm |
| Width (without stand) | 811.7 mm |
| Cable lock slot | Yes |
| HDMI | Yes |
| Product colour | Black, Grey |
| Front bezel colour | Black |
| Doesn't contain | Mercury, PVC/BFR |
| Warranty period | 3 year(s) |
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), KC, KCC, RoHS |
| Power supply type | Internal |
| Game mode | Yes |
| Weight (with stand) | 10.8 kg |
| Surface hardness | 3H |
| Touchscreen | No |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Swivelling | Yes |
| Swivel angle range | 28 - 28� |
| Tilt angle range | -5 - 23� |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Croatian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Ukrainian |
| Picture-in-Picture | Yes |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Adjustable height (max) | 13 cm |
| Picture-by-Picture (PbP) | Yes |
| Power | |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 100 W |
| Power consumption (off) | 0.3 W |
| Input current | 2.5 A |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | F |
| Energy consumption (SDR) per 1000 hours | 31 kWh |
| Energy consumption (HDR) per 1000 hours | 31 kWh |
| Weight & dimensions | |
| Height (without stand) | 361.2 mm |
| Depth (without stand) | 130.2 mm |
| Width (without stand) | 811.7 mm |
| Width (with stand) | 811.7 mm |
| Depth (with stand) | 294.3 mm |
| Height (with stand) | 551.2 mm |
| Weight (with stand) | 10.8 kg |
| Weight (without stand) | 7.65 kg |
| Package width | 930 mm |
| Package depth | 226 mm |
| Package height | 470 mm |
| Package weight | 14.2 kg |
| Packaging data | |
| Package width | 930 mm |
| Package depth | 226 mm |
| Package height | 470 mm |
| Package weight | 14.2 kg |
| Cables included | AC, HDMI, DisplayPort, USB |
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Packaging content | |
| Cables included | AC, HDMI, DisplayPort, USB |
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Sustainability | |
| Doesn't contain | Mercury, PVC/BFR |
| Other features | |
| Certification | WEEE,REACH compliant,RoHs compliant |
| Picture-by-Picture (PbP) | Yes |
| DCI-P3 coverage | 99.3% |
| Bezel thickness type | Frameless |
| Warranty period | 3 year(s) |
| Brand specific technologies | Crosshair |
| Low input lag | Yes |
| FPS counter | Yes |
| Dial point | Yes |
| Shadow control | Yes |
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), KC, KCC, RoHS |
| Game mode | Yes |
| Height (without stand) | 361.2 mm |
| Depth (without stand) | 130.2 mm |
| Width (without stand) | 811.7 mm |
| HDMI | Yes |
| Surface hardness | 3H |
| AMD FreeSync refresh rate range | 48 - 175 Hz |
| Energy efficiency scale | A to G |
| Power supply type | Internal |
| Touchscreen | No |
| Front bezel colour | Black |
| Certificates | |
| Certification | WEEE,REACH compliant,RoHs compliant |
